3 Chuck Heavy Duty Tube Laser Cutting Machine

Description :

WT-6035T three-chuck cnc fiber laser tube cutting machine is equipped with a servo follow-up support system to stabilize the clamping of the pipe and ensure the cutting accuracy.This Triple trucks can achieve zero tail material cutting and developed for large-caliber heavy pipe , also equipped with premium bevel cutting heads and systems, it supports flying cutting, precise Z-axis control, and multiple bevel modes (V, X, Y, K, ±45° adjustable). 3-chuck Heavy-duty Tube Laser Cutting Machines offers fast, flexible, and stable cutting. Its three-chuck structure enables full tube cutting and zero tail material processing, maximizing material efficiency.

Laser Power: 3kW-12kW

Maximum Pipe Length: 12m

Chuck Clamping Range: Φ20-Φ350mm

Online Message Get a Quote

Product Description:

First Part: Semi Auto Loading and Unloading System

Performance Character:

Chain-type transmission, stable structure, can meet the automatic feeding of round tubes, square tubes, steel sections and other pipes, greatly improving the feeding speed. One person can watch over multiple devices, saving labor; modular design is convenient for transportation and assembly; rotating flat support design, with pneumatic support, to ensure processing quality

Technical Parameter:

The loading section

Pipe specification: round pipe Φ 30-350mm

square pipe: 20 * 20-350 * 350mm

rectangular pipe: diagonal less than 350mm

Channel steel and I-beam: 25mm H-beam: 350mm

Pipe weight ≤ 800kg

The length that can be loaded is ≥ 3.6m,

the number of loaded materials is 5,

and the maximum bearing capacity is 4 tons

The unloading part of the material

Larger than 1.1 meters can be automatically discharged

Smaller than 1.1 meters need to be discharged with a simple unloading slope

Second Part:

1. Whole Machine Details List

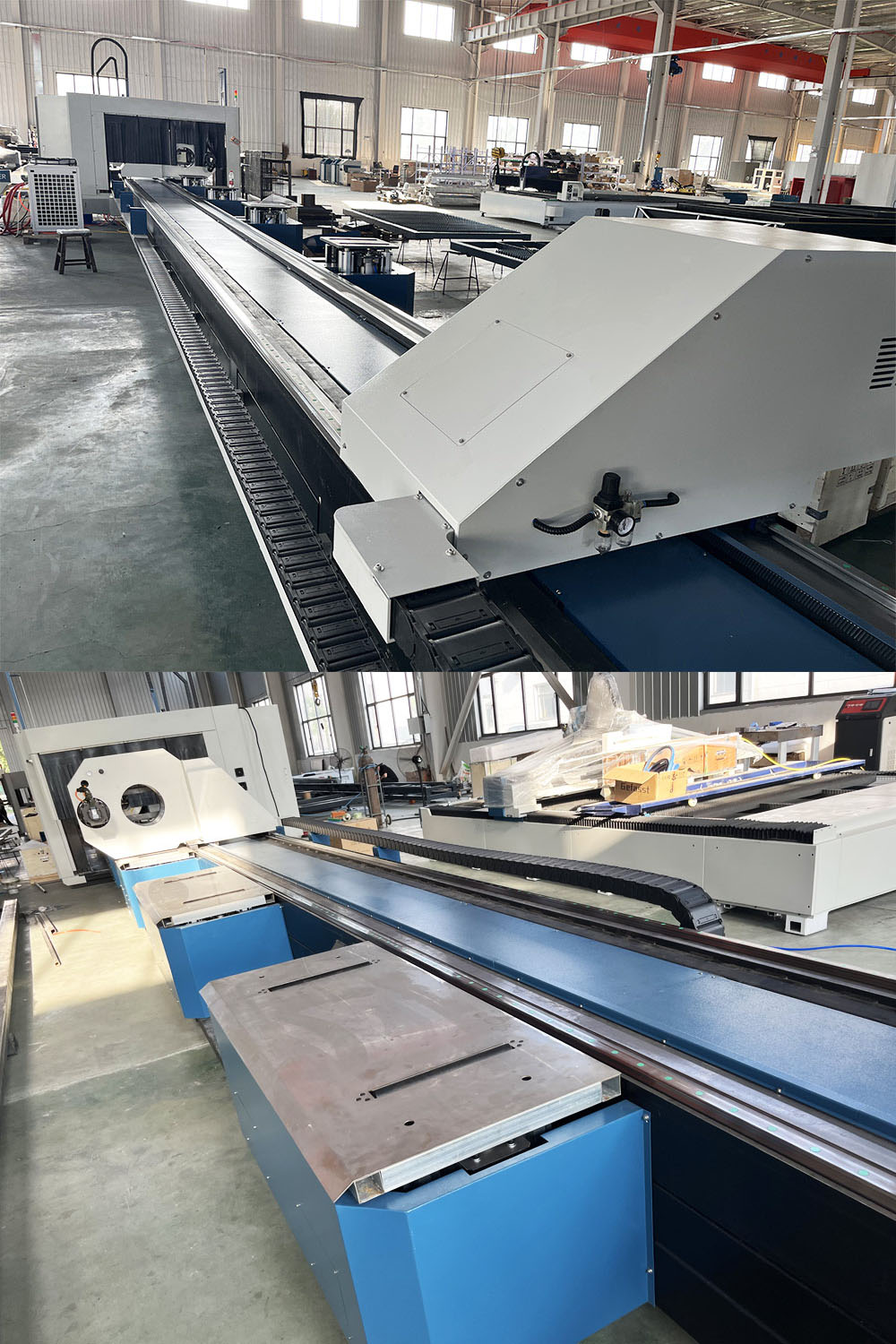

Machine Bed Body The machine bed features an integrated welded design. It undergoes rough machining after annealing to relieve internal stresses, followed by precision finishing after secondary vibration aging treatment. This process mitigates stresses from welding and machining, significantly enhancing machine performance and stability.

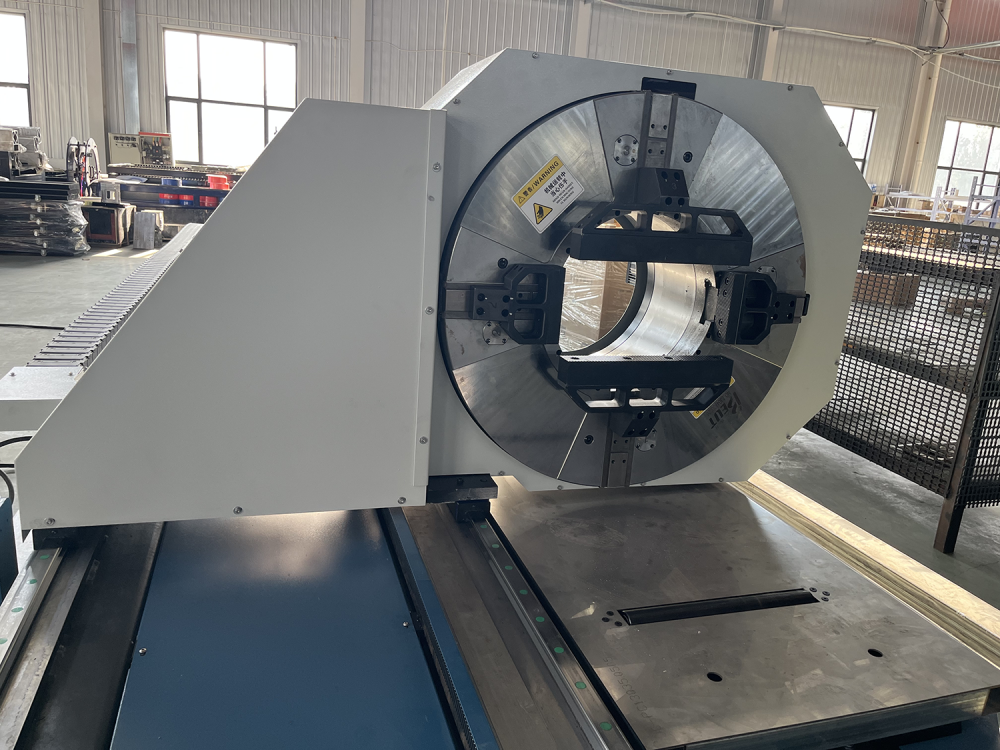

Fixed Pneumatic Chuck Hole Diameter: 350 mm Clamping Mechanism: Four-position clamping with keyway positioning for straightforward operation, eliminating the need for precision adjustments. Versatility: Capable of clamping square, round, and rectangular tubes. Performance: Lightweight design with low inertia and excellent braking capability. Durability: High dust-proof rating, requiring only routine maintenance. Components: Equipped with imported bearings for enhanced stability and smooth motor operation.
Moving Pneumatic Chuck Clamping Range: Ø10 mm to Ø500 mm Design: Double-acting pneumatic chuck with paired, self-centering claws. Operation: Driven by an imported servo motor via gears, enabling both movement and rotation of the chuck. Efficiency: Extends into the inner hole of the front chuck to maximize material usage, minimizing tailings.
Rotable Variable Diameter Lifting Support System Components: Comprises variable diameter wheels, guide rails, and air cylinders. Functionality: Adjusts to the size of the pipe being cut; the user rotates the wheel to the desired support range, locks it, and secures it for operation.
Sheet Metal Cover Surrounding Design: Features an upper opening for easy debugging and operation. Ventilation: Includes a dust extraction pipe to remove waste gases generated during cutting.
Laser Generator 6000W-12000W Raycus laser generator
Automatic Focus Laser Cutting Head BOCI BLT421T/441T autofocus laser cutting head for tube and profile cutting
Industrial Cooling Chiller Hanli HL-6000/12000 chiller

2. Machine Technical Parameters

Machine Working Area
The processing range	Square tube, Round tube Φ10mm-φ350mm Cutting Length 6000-12000mm
The X axis	1000mm
The Y axis	12000mm
The Z axis	300mm
Precision
X/Y axis positioning accuracy	±0.03mm/1000mm
X/Y repeat positioning accuracy	±0.02mm/1000mm
The Z axis positioning accuracy	±0.02mm
The Z axis repeat positioning accuracy	±0.01mm
Speed
X/Y axis maximum positioning speed	90m/min
X/Y axis maximum acceleration	8m/s²
Chuck Rotation Speed	105rpm
Power Supply
Phase number	3
Voltage	380V
Frequency	50HZ
Total power protection grade	IP54
Whole Machine Power(not including laser and chiller)	27KW
Weight and measures
Overall dimensions (LWH)	2950031502290mm
Machine Weight	21.5 Tons

3. Main Configurations

Serial Number	Name	Brand	Comment
1	Laser	Raycus 6000W	China
2	System	Cypcut 5000A	CHINA Shanghai
3	Cutting head	BOCI BLT421T Automatic Focus Laser Head	Shanghai
4	Motor	Fuji	JAPAN
5	Motor Driver	Fuji	JAPAN
6	Chuck	500 Chuck Pneumatic (Four Chucks Version)	CHINA
7	Rack	Taiwan YYC	TAIWAN
8	Reduction gears	Shimpo	Japan
9	Linear guideway	Taiwan HIWIN	TAIWAN
10	Magnetic valve	Japan SMC	JAPAN
11	Proportional valve	Japan SMC	JAPAN
12	Electrical components	Schneider	France
13	Industrial Chiller	HANLI	CHINA
14	Machine Bed	WISECUT	CHINA

4. Conditions of Tail Cutting

1) for 3 chucks, when the finished product length is ≥1150mm, 0 tail can be achieved

When the finished product length is less than 1150mm, it can be combined with other parts in the nesting software (micro-joining) to make the

cutting length ＞ 1150mm.

for 3 chucks, when two chucks are clamped and cutting and the finished product length is less than 1150mm, the tail material of clamping an extra-large tube (the rear chuck clamp cannot extend into the front clamp when clamping) is 750mm; when clamping a small tube, the rear clamp can extend into the front clamp, tail material 390mm

3) for 2 chucks, the remaining tail material that cannot be cut is 130mm; when clamping a larger tube, the rear clamp cannot extend into the front clamp tail material length is 500mm(Maximum)

5. Cutting Samples
