Affordable CNC Bending Machine
Affordable CNC Bending Machine
Affordable CNC Bending Machine
Description :

WISECUT WT-3012P characteristics : the sheet is bent under pressure through adjustable upper and lower dies, with high precision and easy operation.The affordable CNC Bending Machine with DA-53T control offers precise and efficient sheet metal bending, featuring advanced CNC technology for accurate positioning and seamless operation, ideal for high-precision industrial applications.It is widely used in sheet metal processing, machinery manufacturing and other fields. This small press brake Uses electro hydraulic servo system, full closed loop feedback control synchronization and Adopt Hydraulic transmission to ensure stable and reliable operation.

Bending Power: 400tons

Bending length: 2500mm/3200mm/4100mm

Throat depth: 550mm

Product Description:

1.Machine Details

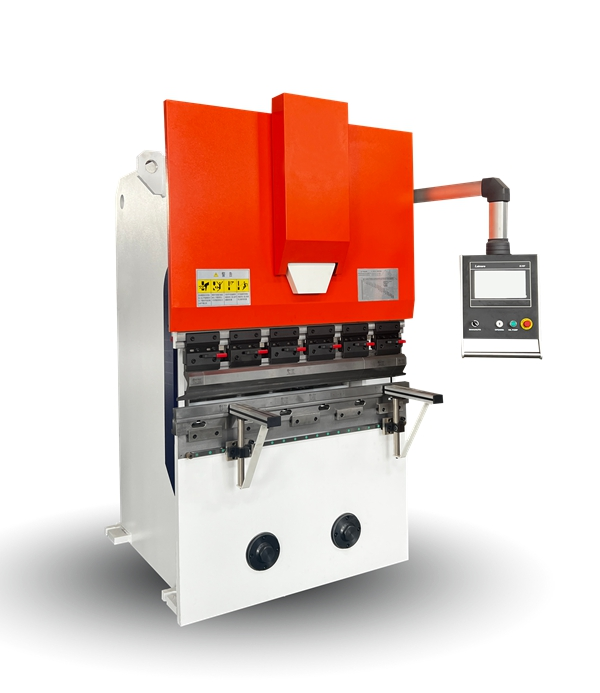

Machine Body

Machine Body

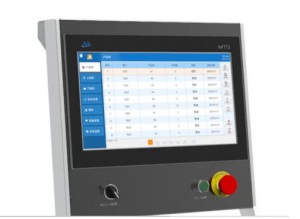

Controlling System

Controlling System

Controlling Cabinet

Controlling Cabinet

Servo Motor

Servo Motor

Hydraulic System

Hydraulic System

GIVI Magnescale

GIVI Magnescale

HIWIN Guide Rail

HIWIN Guide Rail



2.Technical Parameters

Item

Parameters

unit

Nominal pressure

300

KN

Workbench length

1250

mm

Distance between columns

1000

mm

Throat depth

200

mm

Slide stroke

160

mm

Maximum opening height

420

mm



Working speed

Quick Down

200

mm/s

Bend

0~30

mm/s

Trip Return

200

mm/s

Repeated positioning accuracy of slider.

0.01

mm



X-axis travel of rear material.

Stroke

500

mm

Maximum operating speed.

450

mm/s

Repeated positioning accuracy

0.02

mm

Deflection compensation system

NOT included



Number of control axes.

3 axis

Y, X, R

Outer dimension

Length

1500

mm

width

1400

mm

Height

2200

mm

Main motor power

7.5

KW

Fuel tank capacity

150

L

Machine weight

2600

Kg



3. Machine Performance

◆ Whole machine rigid design and finite element optimization analysis minimize the impact of bending deformation on work-piece quality.

◆ Full closed-loop electro-hydraulic servo synchronous control system imported from Germany



4.Frame Structure

◆ All steel plates are welded integrally, with strong vibration resistance;

◆ Large tempering furnace is used to eliminate stress, with good stability and no deformation of the frame;

◆ The machine frame is formed by the machining center at one time, which ensures the parallelism and verticality of each mounting surface;

◆ A “C”-shaped plate mechanism is arranged at the throat of the machine frame, which directly detects the distance between the upper and lower dies to ensure the precision of the parts.

5. Slider Structure

◆ Upward bending design, low noise and stable working condition;

◆ The slider is thickened and widened to minimize the deflection during bending;

◆ The universal upper die mounting surface can meet the clamping requirements of the die to the maximum extent.



6. Hydraulic System

◆ Adopt the most advanced fully closed-loop electro-hydraulic servo synchronous control system;

◆ Y can be programmed independently, can work under unbalanced load, and can also be bent conically;

◆ The lower fixed center has pressure holding time, which can be programmed to ensure the accuracy of different parts;

◆ The Givi magnetic grating ruler is selected, and the high-precision guiding system and position measuring system are closed-loop controlled, which can meet the processing needs of full-length or unbalanced load;

◆ The seal in the oil cylinder is stauntone, with strong sealing performance and long service life;

◆ Hydraulic system pipe fittings and joints are imported from abroad, with good quality and strong performance;

◆ The hydraulic system has overload overflow safety protection;



7. Control SystemDELEM DA53T

◆  Can store 1 million products

◆ 100,000 sets of molds can be stored separately

◆ The working steps can be cycled up to 9999 times

◆ Maximum count 9999

◆ Programmable speed per step

◆ Real-time display of mold graphics



8.Standard Configuration

No.

name

brand

remarks

1

Numerical control system

MT10

Germany Laimore

2

Servo drive

INOVANCE

Inovance

3

Servo motor

INOVANCE

Inovance

4

Guide Rail

HIWIN

Taiwan

5

Lead screw and slider

HIWIN

Taiwan

6

Magnescale

GIVI

Italy

7

Hydraulic System

Rexroth

Rexroth
