WT -C series handheld laser cleaning machine is a powerful tool that uses afocused beam of light to clean and remove surface contamination.Laser cleaning machine withthe ability to clean the most intricate surfaces with astonishing precision for oil, rust, paint layerremoval, Variety of laser power options. Laser rust remover manufacturer provides you with freetechnical, fast delivery worldwide.
Laser Power:1000-3000W Max cleaning width :400mm Laser source: Raycus global version

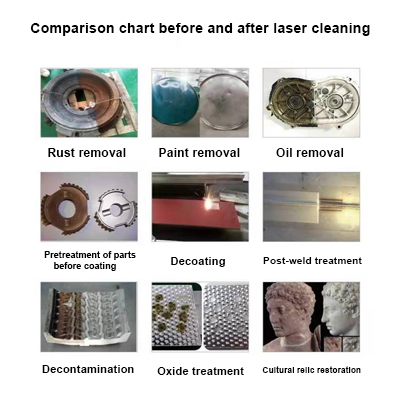

The laser cleaning machine uses a high-energy density laser beam to irradiate the surface of the workpiece to instantly evaporate or peel off the dirt, rust or coating on the surface, so as to achieve a clean, green, energy-saving and efficient industrial tool. It can quickly remove paint in practical applications. Rust removal, removal of oxides, oil stains, and product residues, restoration and preservation of historical cultural relics, etc. It does not require any CFC organic solvents that destroy the ozone layer and is pollution-free. , No noise, harmless to the human body and the environment, it is a truly green cleaning technology.
The complete set of handheld optical fiber laser cleaning machine mainly consists of continuous optical fiber laser, transmission optical fiber, handheld laser cleaning head, control system and cabinet
Fiber Laser

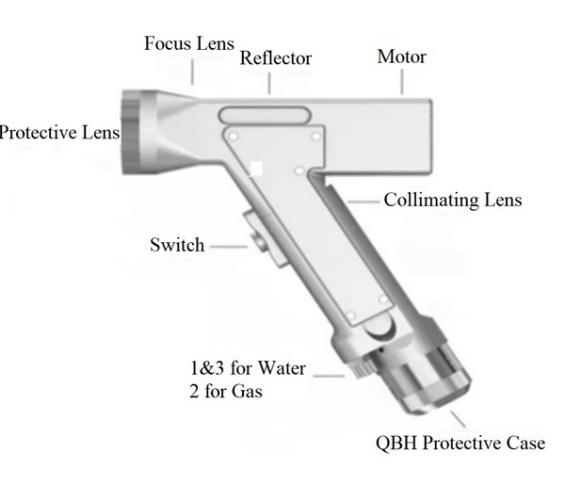

Cleaning Head Gun
Technical Parameters
Model
WT-C1000
WT-C1500
WT-C2000
Laser type
Continuous optical fiber optic laser
output rating
1000W
1500W
2000W
Power regulation range
10%～100%
Laser center wavelength
1080±3nm
Output mode
Continuous / modulation
Maximum modulation frequency
50kHz
Power instability
<3%
Optical fiber output interface
QBH
pilot block system
glow
Fiber fiber core
20μm
30μm
50μm
Fiber length
15mm
Clean the gun cable length
10m
Cleaning gun type
swing the mirror cleaning head from left to right
Quasi-direct focal length
50mm
Focus on focal length
80mm/120mm
Cleaning width
0-150mm
Wash the weight of the gun
0.8kg
Air protection mode
Coaxial protection
F. D
300mm±20mm
Water flow
>12L/min
>15L/min
>25L/min
product mix
integrated
split type
Product size L * D * H
1200*600*1300mm
1200*600*1300mm
680*590*1140mm
Product weight
160kg
250kg
operating ambient temperature
10～40℃
Humidity of working environment
<70%
working voltage
Single-phase 220VAC
Three-phase Five-line 380VAC
Single-phase 220VAC
Power of the whole machine
<5kw
<7kw
<9.5kw
