High performance Full cover laser cutting machine
High performance Full cover laser cutting machine
High performance Full cover laser cutting machine
Description :

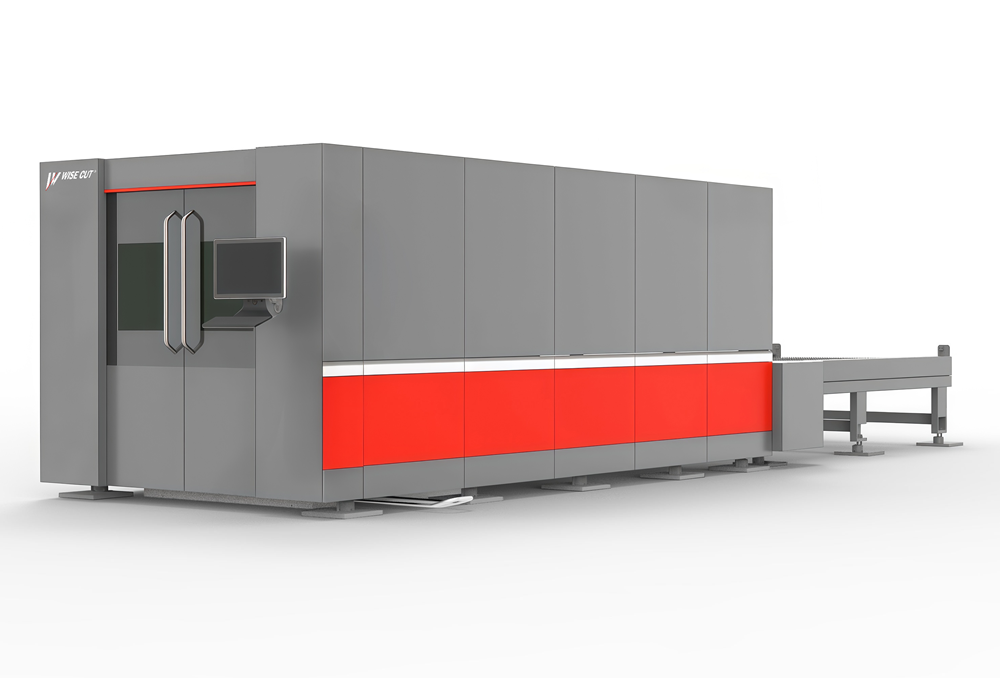

WT-12025 High Power 20kW whole Cover Fiber Laser Cutting machine can increase the cutting thickness of stainless steel to 100mm, carbon steel to 65mm, and aluminum to 60mm.The working area up to 12050*2530mm can be chosen as per your needs. The heavy-duty frame bed is adopted with stable structure, small deformation, and can withstand higher acceleration. The machine is fully covered, environmentally friendly, and has low noise. Compared with traditional CO2, YAG, Water jet, and Plasma, the fiber laser cutter is the newest laser type which has obvious advantages, including top quality beam, high photoelectric efficiency, reliability, low maintenance, etc.

Laser Power: 6000-30000W
Processing Area: 12050*2550 mm
Running Speed: 120 m/min
Cutting Thickness: Max 70mm

Online Message Get a Quote
Product Description:

Machine table:

1) Super stable heavy duty plate welded machine body especially for high power lasre cuting .

2) Built for stability. Mortise and tenon welding process ensure that the bed with sufficient structural stability, shock resistance.

3)Highly efficient heat dissipation and dust removal can longer machine lifetime.

 Bed Structure

Machine beam:

1) Aviation-grade aluminum beam with reforced structure ,also light weight  with high precision

2) Durability and stability with Stress relief annealing, aging treatment and fine machining.

 Aluminum beam

Rail+Rack System, Sevo motor +Driver

1) TAIWAN Rail +rack
Low noise, wear-resistant, smooth to keep fast  moving speed of laser head .

2) Servo Motor-Fuji Servo motor and driver

3)Satellite Gears are Double-supported on Hardened and Ground Shafts with Full-complement Needle Bearings Increasing Torsional Stiffness.

 Transmission System

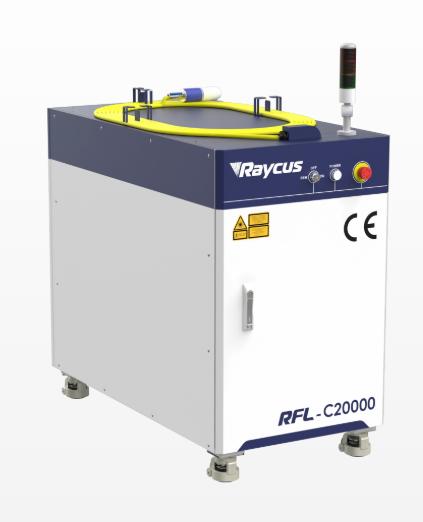

Raycus Laser CE Version  RFL-C20000M-CE

The Raycus  20000W High-Power Global Series CW Fiber Lasers, come with high electro-optical conversion efficiency, high-grade beam quality, high energy density, wide modulation frequency, reliable performance, long operational life, and maintenance-free functionality.

 Raycus Laser CE Version  RFL-C20000M-CE

Laser Head+Controlling System

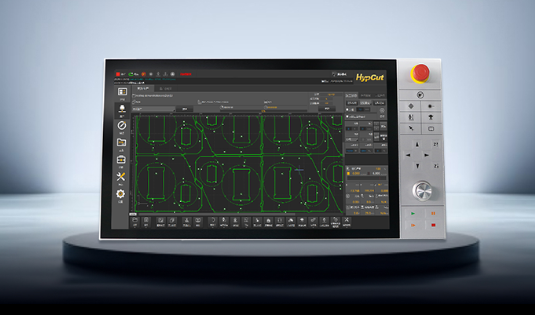

1) Control system is FSCUT8000E, with functions Circle Center, Flash Piercing Deslag Piercing ,Self-adjust Vibration Suppression,Smooth Piercing ANDSmooth MicroJoint

2) BLT662 Laser head ,  with Smart Frame, Water-Cooled Nozzle AND Collision Protective Plate ,One-step reset, resume work instantly, Quick recovery after impact, reducing usage costs.

 Laser Head+Controlling SystemLaser Head+Controlling System

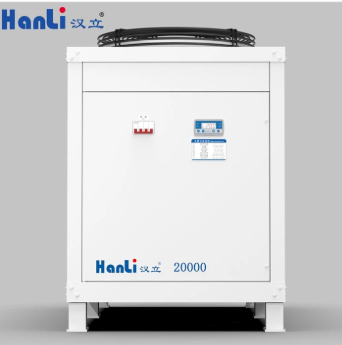

20000W water cooling chiller

1) High Performance Fiber Laser Large capacity industrial refrigeration unit

2) with a high-quality compressor, a large-capacity water pump, and a high-performance heat exchanger, which work together to maintain the temperature of the fiber laser at a stable level.

3) Large capacity, and user-friendly interface make it an ideal choice for industrial laser cutting and welding applications.

 20000W water cooling chiller



Technical Parameter:

Item Parameter
Model WT12025
Working size 12050*2550mm
X travel 2550mm
Y travel 12000mm
Z travel 300mm
X/Y position accuracy ±0.05mm
Z position accuracy ±0.008mm
X/Y resetting ±0.03mm
position accuracy
Max no-loading running speed 120m/min
Processing panel thickness 18 mm
(Max)
X/Y max  accelerated speed 1G
Table Max loading weight 1T
 Cooling Water cooling
Power demand Voltage 380V
Current 100A
frequency 50HZ
Outer size Length 26500mm
Width 4300mm
High 2600mm
 Machine weight 30.5T



Item Produce factory Remark
Whole lathe bed WISECUT
 Crossbeam WISECUT Aviation aluminum
 Laser Raycus 20000W laser
Laser Cutting Head BOCI BLT Auto Focus
Controlling system CYPCUT
Height follow system CYPCUT BCS100
Servo Motor Japan Fuji
 Reducer Japan/France reducer
 Rail Taiwan HIWIN
Rack Taiwan helical rack YYC helical rack
Chiller Hanli Chiller/S&A Chiller HL-20000 for20KW
Electrical components French Schneider
Pneumatic component SMC / AirTAC
Proportional valve SMC
Industrial Computer Yankong



Application：

Wisecut metal sheet laser cutting machine widely used in sheet metal processing,suitable for cutting stainless steel.carbon steel ,alloy steel, aluminum,aluminum alloy, galvanized sheet, aluminized zinc sheet, other metal plate.and steel pipes.
