Portable Air Cooled Laser Welding Machine
Description :
Air Cooler WT-A1500
WT-1500A air cooled laser welding machine can achieve up to 50% energy savings compared to traditional water-cooled units, and enable immediate welding starts without waiting for cooldown cycles.WT-W1500A features a compact, lightweight structure for effortless mobility and positioning within dynamic workshop environments.Air-cooled Laser welders are more efficient. Fast working speed, even heating, automatic control, reducing human intervention. It can be carried out immediately without waiting for cooling, which improves the welding efficiency.
Left and right oscillating galvanometer welding head
Collimating focal length
60mm
Focused focal length
150mm/200mm
Wire feeding diameter
0.8、1.0、1.2、1.6. 2.0
Welding torch weight
0.8kg
Protective gas mode
Coaxial protection
Adjustable width of weld seam
0～6 mm
Product mix
Integrated
Machine size L*D*H
610*390*570mm
Machine Weight
41kg
Operating ambient temperature
-10～40℃
Working environment humidity
<70%
Operating voltage
Single phase 220VAC
Whole machine power
<3.5kw
Main Configurations
No.
Major component
Brief description
Remarks
1
laser
Continuous fiber laser. The central wavelength is 1080±5nm
Top 3 brand
2
Transmission optical fiber
10m flexible optical fiber, QBH interface
BWT
3
Wire filler swinging welding head
Ultra-light and compact, swinging the light spot from side to side, with safety circuit triggering protection function. Wire feeding mechanism
Chaoqiang weiye
4
Wire feeding system
Patent design
Chaoqiang weiye
5
Control system
Chinese and English operation interface, touch screen control
Chaoqiang weiye
6
Machine Cover
Integrated design with universal walking casters
WISECUT
7
Wire feeding mechanism
Intelligent control system
Chaoqiang weiye
8
Tool Box for Free
Spare Parts
One oxygen meter, one pair of wrenches,
one pair of protective goggles, one pair
of gloves, 10 protective lenses, one
adapter 12&8, 8 copper nozzles
Free Parts
Description of Main Units

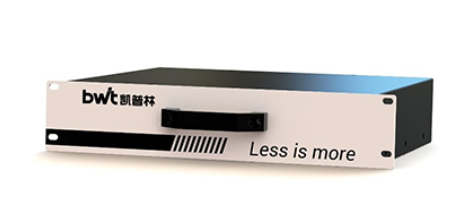

1. Continuous Fiber Laser Generator
1500W Laser Source
Main Features
Excellent Beam Quality
＜1.1
High Reliability
Military level design
High Power Stability
Power fluctuation less than 2%
Continuous Adjustable Power and Fast Switching Response
Maintenance Free Operation
10us
High Electro-optical Conversion Efficiency
＞30%
High Modulation Frequency
MAX 50Khz
Main application areas
Industrial cutting, welding, 3D printing, laser research, laser obstacle cleaning
2. Transmission optical fiber
A single laser welding system includes a versatile 10-meter-long optical fiber with a bending radius as tight as 80mm. During energy transmission, the laser fiber boasts a robust self-protection mechanism. It automatically halts the optical path or deactivates the laser in cases of fiber wear, aging, excessive bending, overheating, or laser leakage, ensuring both personnel safety and secure fiber operation.
3. Hand-held laser welding head and Wire feeding system
3.1 Handheld laser welding head
(SUP23T for 1500W usage)
Characteristics of laser welding head:
Clever Internal Structure: A smart design paired with an effective control system broadens the tolerance for part variations and weld sizes, addressing the limitations of tiny light spots to achieve superior weld quality.
Lightweight and Ergonomic: Crafted with a user-focused design, it offers a comfortable grip, easy one-handed handling, and straightforward operation.
Robust Safety Features: Equipped with multiple warning systems, it automatically stops the laser when the workpiece is removed, ensuring strong safety measures.
Flawless Weld Results: Produces smooth, rapid welds without marks or color changes, eliminating the need for post-polishing and reducing material usage.
Adaptable Nozzle Options: Supports a variety of nozzle angles to fulfill diverse welding needs for different products.
Technical parameters:
The interface is of the QBH type, featuring a coaxial optical path design for laser incidence.
The laser output power reaches up to 1500W, with an emission wavelength range of 1080±20 nanometers.
Equipped with a collimating lens assembly with a 50mm focal length, and offers optional focusing lenses of either 80mm or 120mm.
Supports coaxial delivery of protective gas, with an overall weight of just 0.9 kilograms, and the beam slit width is adjustable between 0 to 6 millimeters.
3.2 Wire feeding system
Standard wire feeding specifications: 0.8, 1.0, 1.2, 1.6mm and 2mm
Product Advantages:
Simple Setup and Durability: Easy to install, long-lasting, quiet operation, and energy-efficient.
Compact and Lightweight: Small in size, light in weight, with strong torque, suitable for long-distance handheld welding wire feeding.
Stable and Adjustable Feeding: Wire feeding syncs smoothly with welding control, offering consistent and customizable performance for various applications.
User-Friendly Software Control: Wire feeding speed is managed via a control screen, with the ability to save and recall multiple data sets as needed.
Welding Samples:
Applications:
Kitchen utensils, elevators, advertising, doors and windows, shelves, chassis industries, etc.
Handheld Laser Welding Machine 1.1 Machine Working Principle Laser is a new light source, which has the characteristics of coherence, monochromaticity, directivity and high output power, which is incomparable with other light sources. When the laser is focused to one point, the power density on the focal plane can reach 105-1013w/cm2. Laser welding works by using […]
Technical Parameters Model WT-WELD WT-WELD II Laser type Continuous fiber laser Output rating power 1500W 2000W Power regulation range 0%～100% Laser central wavelength 1080±5nm Output mode Continuous/modulation Maximum modulation frequency 50–50kHz Power instability ±1.5% Optical fiber output interface QBH Indicating system Red Laser Optical fiber length 10mm Welding torch cable length 10m Type of welding gun […]
Unique Advantages * Easy to move, beautiful appearance, can carry maximum 6000W fiber laser and water chiller, fully realize the integration of handheld laser welding machine * Equipped with an air pressure alarm device, when the air pressure is too low, the indicator light will automatically alarm to prevent dust from entering the inside of […]
