40Tons Pure Electric CNC Press Brake|HIGH speed|WISECUT

WISECUT 40TX1200MM CNC Press Brake Electric Model

Description :

We specialize in producing high-efficiency and energy-saving pure electric servo bending machines, using advanced servo motor direct drive technology to achieve high-precision metal sheet bending and forming. Our CNC bending machine integrates energy saving, precision, and intelligence, and is a revolutionary solution for the metal processing industry.

Core technological advantages:

The fully servo motor drive system can save up to 70% energy compared to traditional hydraulic bending machines

Bending Pressure: 40 Tons, Bending Length: 1250mm

0.01mm Repeatability Positioning Accuracy, Ensuring Consistent Bending Angles Each Time

Intelligent CNC system, supporting programmed production of complex workpieces

Maintenance free design, no hydraulic oil pollution, cleaner working environment

Application Industry

Widely used in sheet metal processing, chassis and cabinets, automotive parts, elevator manufacturing, metal furniture and other industries, suitable for precision bending processing of various metal materials such as stainless steel, carbon steel, aluminum plate, etc.

Online Message Get a Quote

Product Description:

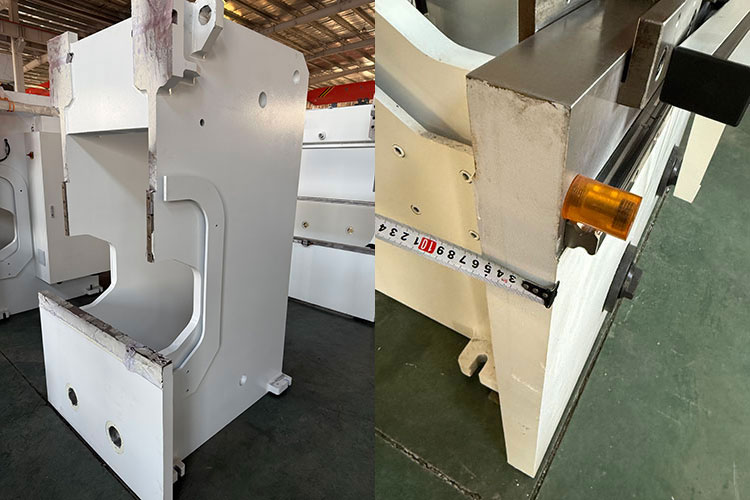

Machine Body

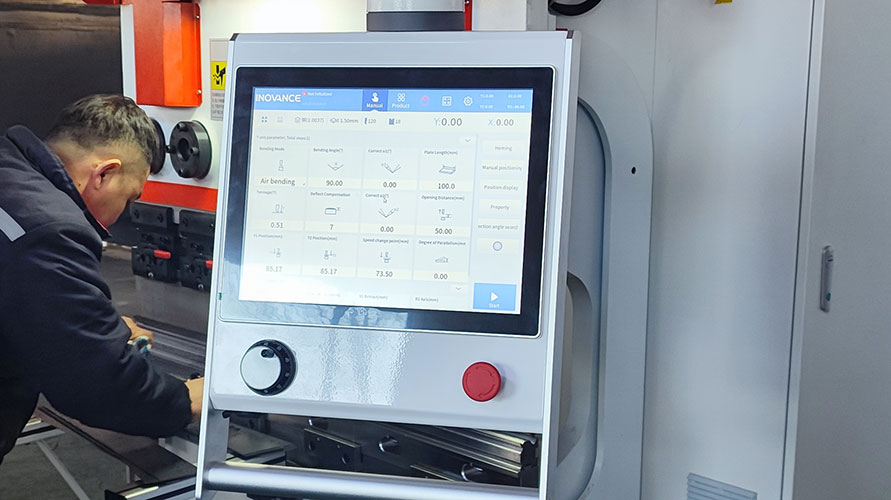

Controlling System

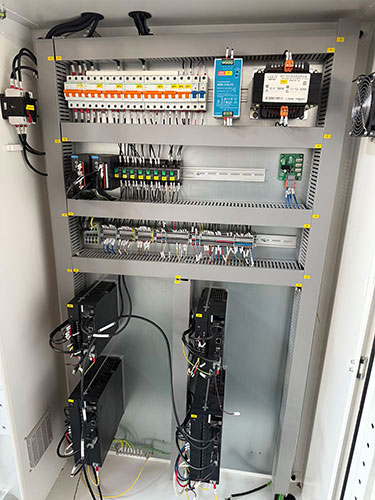

Controlling Cabinet

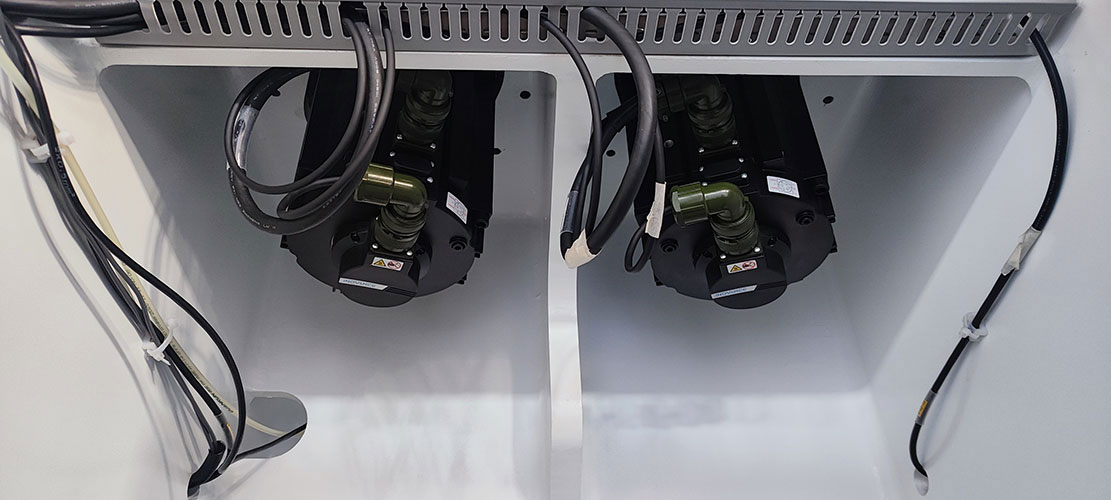

Servo Motor (Electric Servo Motor)

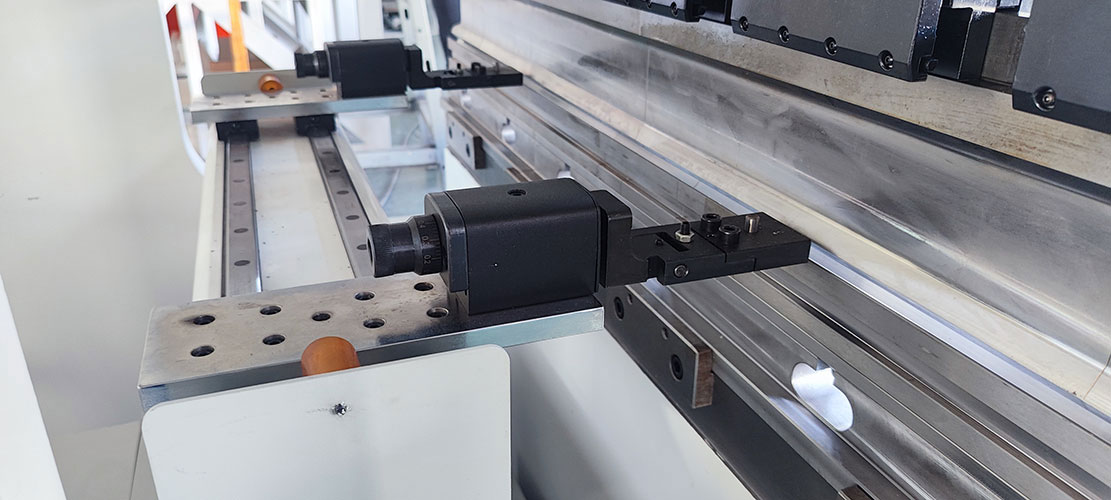

Rear Gauge + Baffle Finger

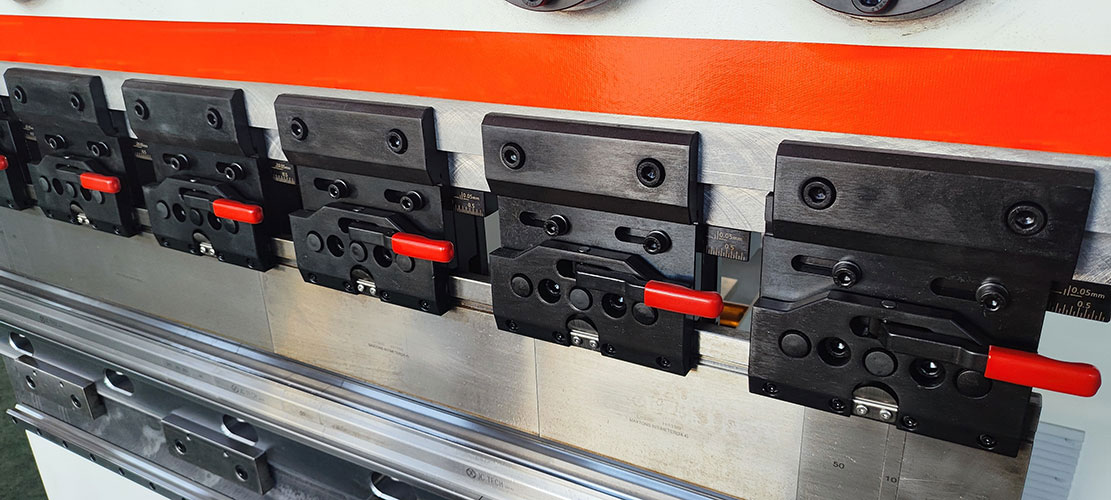

Quick Clamping

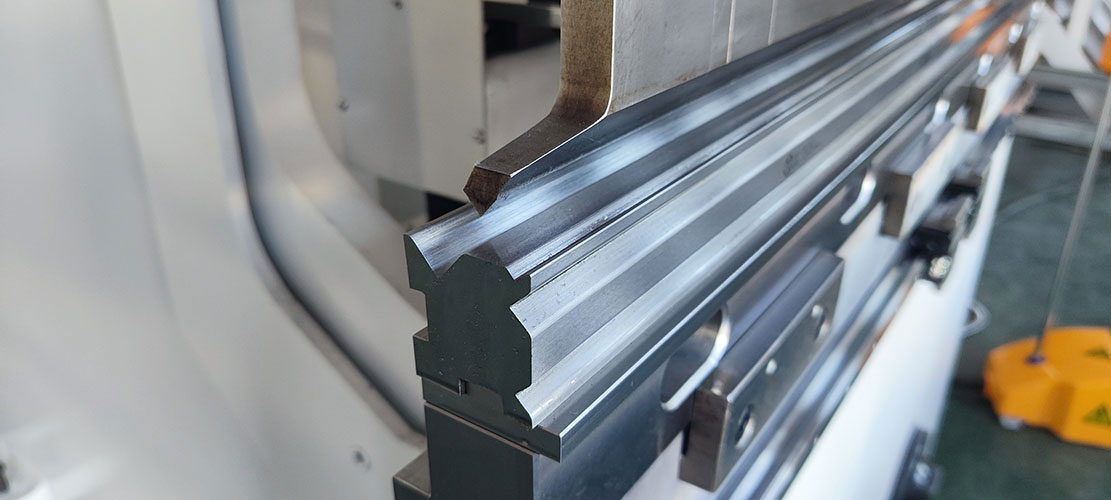

Upper and Lower Molds

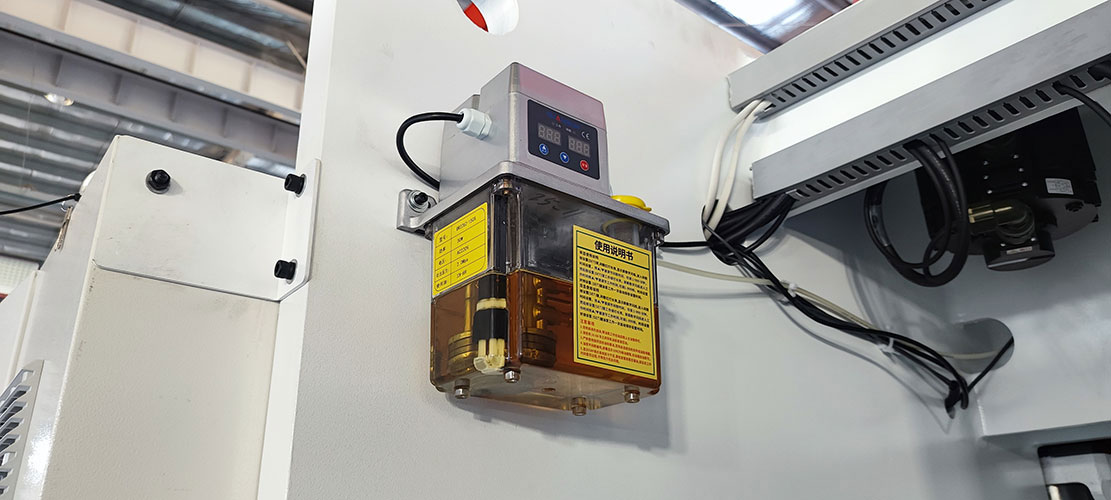

Oil Lubrication
R Axis Rack & Pinion

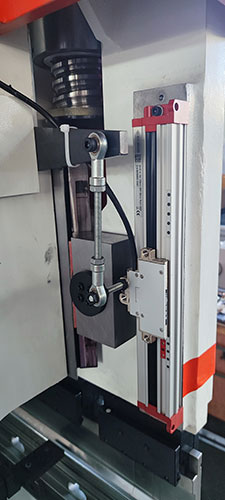

GIVI Magnescale
Taiwan Guide Rail

Technical Parameter:

Item		Parameters	Unit
Bending Power		40	Ton
Bending Length		1250	mm
Distance between columns		950	mm
Throat depth		300	mm
Slide stroke		160	mm
Maximum opening height (Daylight)		420	mm
Working Speed	Quick Down	200	mm/s
	Bend	20~50	mm/s
	Trip Return	200	mm/s
Repeated positioning accuracy of slider		0.01	mm
X-axis travel of rear material	Stroke	550	mm
	Max. Running Speed	300	mm/s
	Repeated positioning accuracy	0.02	mm
R Axis	Stroke	250	mm
R Axis	Max. Running Speed	200	mm/s
Deflection compensation system		Not included	–
Number of control axes		4 axis	Y1, Y2, X, R
Outer Dimension	Length	1600	mm
	Width	1555	mm
	Height	2320	mm
Main servo motor power		7.5KW*2	KW
Machine weight		4000	Kg
Whole Machine Power		18	KW
