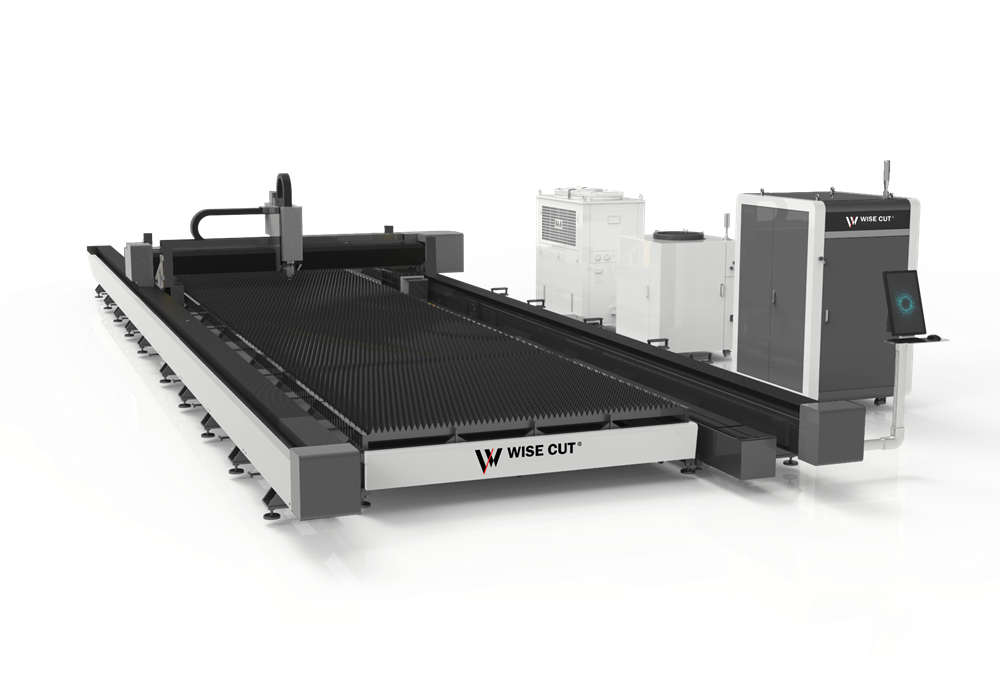

Exchange Table Fiber Laser Cutting Machine
Description :
WT-4020 Open type exchange table fiber laser cutting machine designed for cutting all metal materials with high accuracy and high efficiency. Wisecut laser cutting system featured with a parallel switching platform and bilateral drive for stability, rigidity, and speed. With high-speed parallel exchange and double worktable, it ensures reliable transmission, shorter swift time( only 15 seconds ) , and a smoother cutting surface. This dual platform Laser cutting machine workable for rapid, flexible, and large-scale cutting tasks, capable of handling all types of cutting applications.

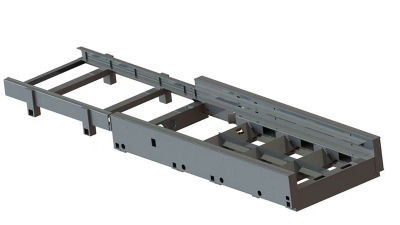

1) Machine tool bed is pipe-welded and designed as semi-hollow type to lessen thermal deformation.
2) Made of super-heavy steel sheet mortise and rivet welded, highly strength and stability
3) Intelligent exchange platform for rapid swapping, increasing production efficienty

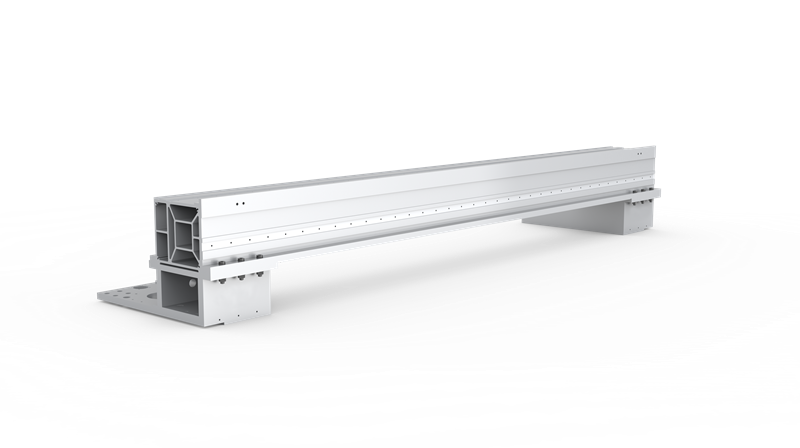

Machine beam:
1) Made of high -quality aluminum alloy, ensure stability and precision.
2) with dual-beam design, ensure long-term stable cutting without deformation
3) Beam with high-grade strength aluminum, ensure swift and agile cutting motions.

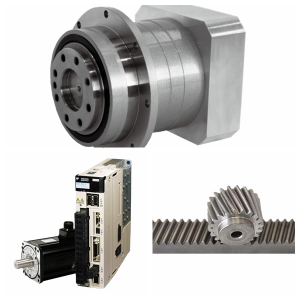

High performance System
1) High speed and performance rail with long service life.
2) TAIWAN YYC Helical Rack and Pinion, ensure the transmission high precision,high speed and high stable.
3) Servo motor and driver, ensure high quality and stable performance.

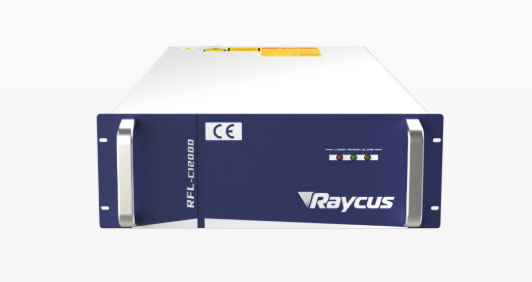

6000W Raycus Laser Rezonrator-CE Version
1) High Electro-optical Conversion Efficiency
2) Wide Modulation Frequency
3) High power instability
Cypcut Laser Head+Controlling System
1) FSCUT4000E control system is cost-effective, realizes control of motion, laser and cutting gas.
2) BLT421S laser head with collision Protection, fast focusing, protective Window Monitoring
3) Cypcut is easy to use, rich in function, stable and reliable.

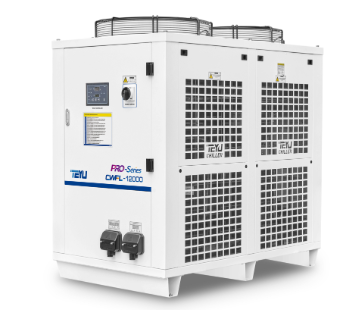

Industrial water cooling chiller
1) Industrial chiller has a water temperature control and precision of ±1℃.
2) Dual refrigeration circuit and specially designed for fibler laser process.
Technical Parameter:
Item
Parameter
Model
WT4020
Working size
4050*2050mm
X travel
2050mm
Y travel
3500mm
Z travel
300mm
X/Y position accuracy
±0.05mm
Z position accuracy
±0.008mm
X/Y resetting
±0.03mm
position accuracy
Max no-loading running speed
120m/min
Processing panel thickness
18 mm
(Max)
X/Y max accelerated speed
1G
Table Max loading weight
1T
Cooling
Water cooling
Power demand
Voltage
380V
Current
100A
frequency
50HZ
Outer size
Length
8900mm
Width
3600mm
High
2100mm
Machine weight
9.5T
Item
Produce factory
Remark
Whole lathe bed
WISECUT
Crossbeam
WISECUT
Aviation aluminum
Laser
Raycus
6000W laser
Laser Cutting Head
BOCI BLT
Auto Focus
Controlling system
CYPCUT
Height follow system
CYPCUT
BCS100
Servo Motor
Japan Fuji
Reducer
Japan/France reducer
Rail
Taiwan HIWIN
Rack
Taiwan helical rack
YYC helical rack
Chiller
Hanli Chiller/S&A Chiller
HL-6000 for 6KW
Electrical components
French Schneider
Pneumatic component
SMC / AirTAC
Proportional valve
SMC
Industrial Computer
Yankong

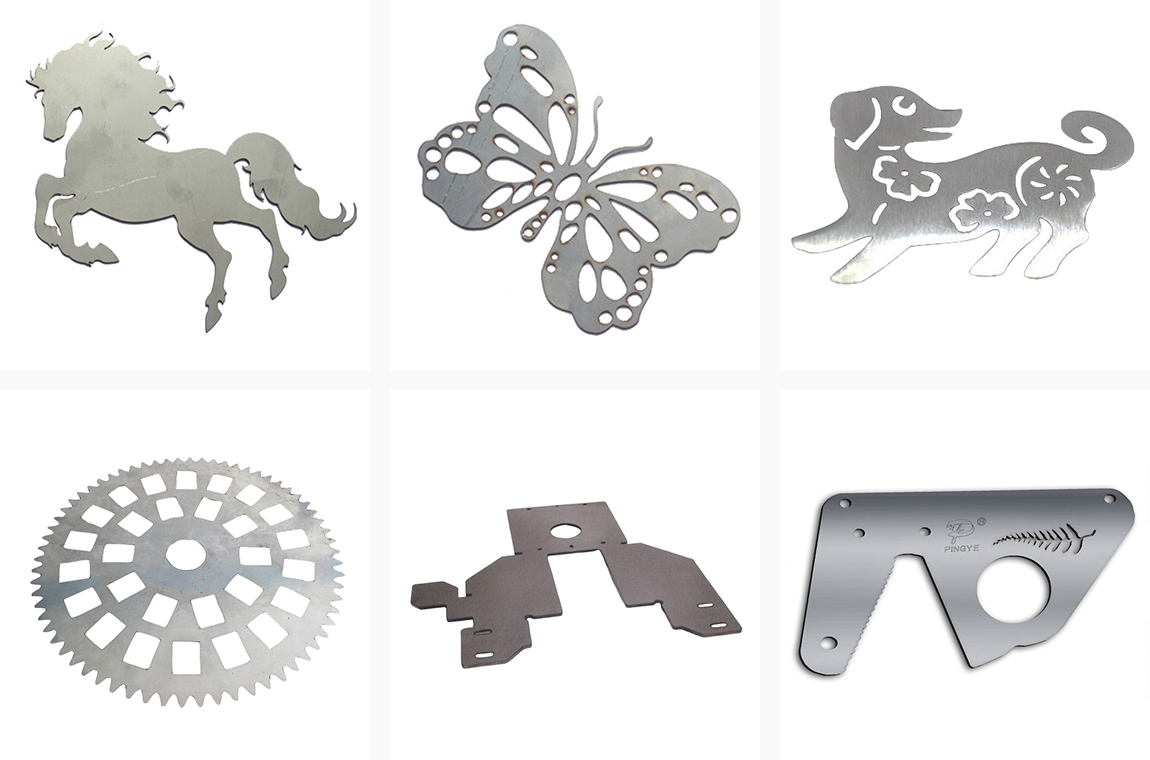

Application：
Wisecut metal sheet laser cutting machine widely used in sheet metal processing,suitable for cutting stainless steel.carbon steel ,alloy steel, aluminum,aluminum alloy, galvanized sheet, aluminized zinc sheet, other metal plate.and steel pipes.
