Hydraulic and Electric CNC Press Brake Machines

1.Machine Details

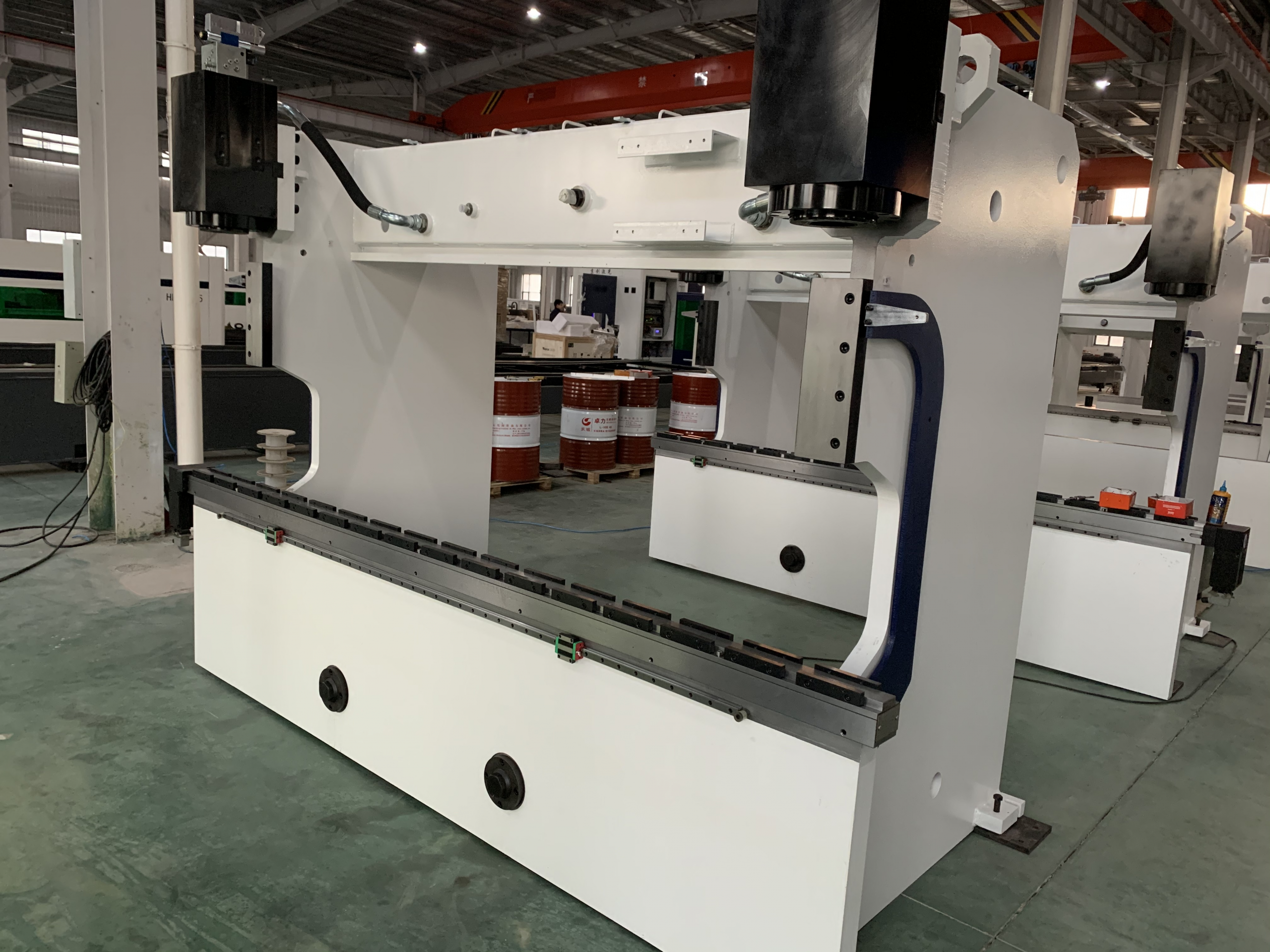

Machine Body

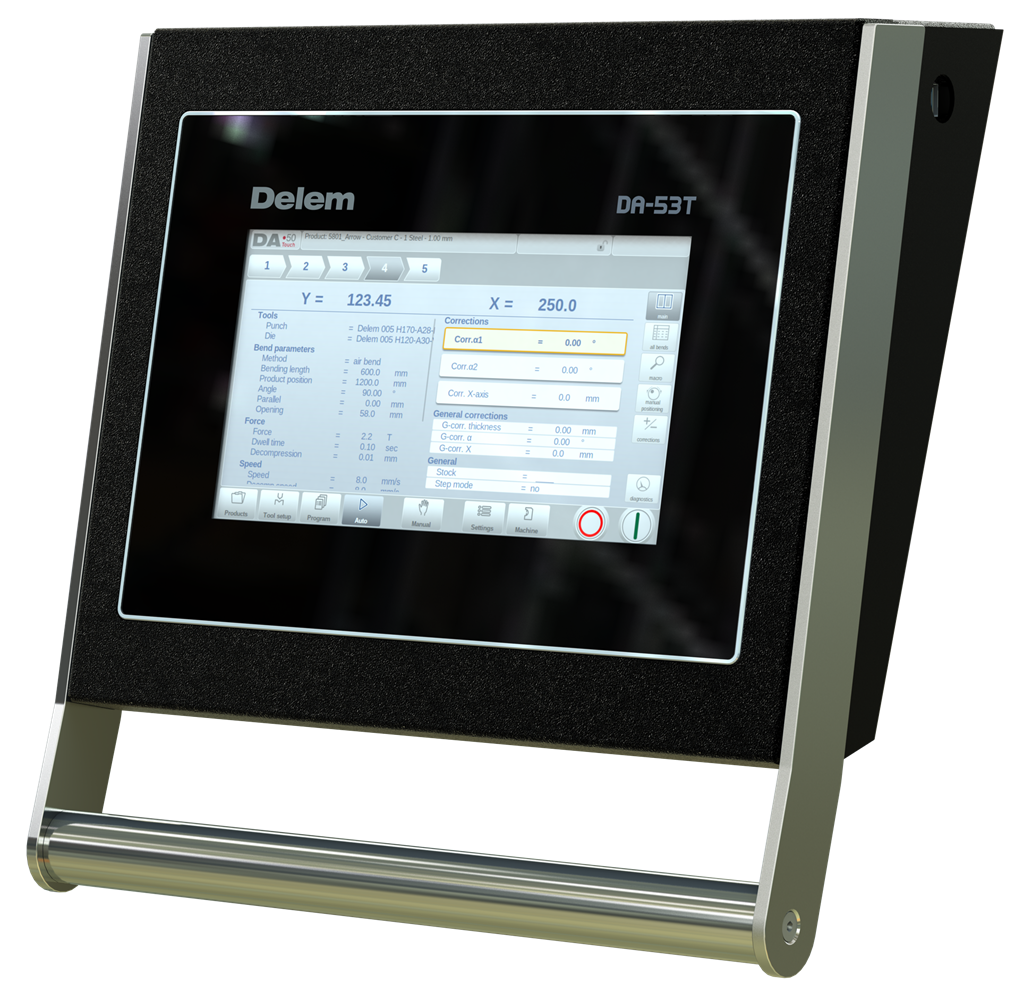

Controlling System

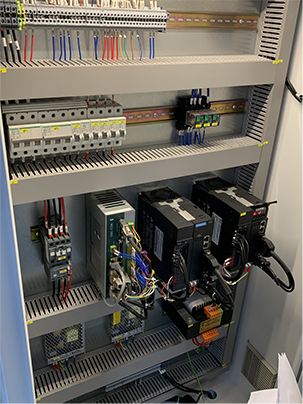

Controlling Cabinet

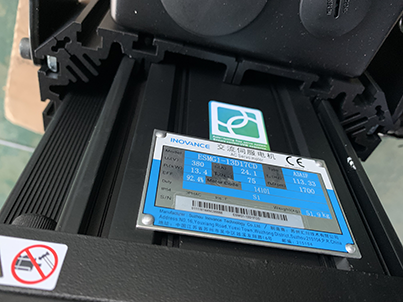

Servo Motor

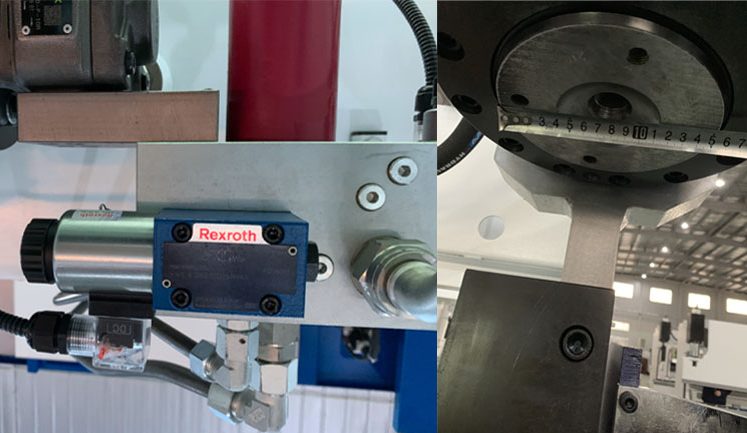

Hydraulic System

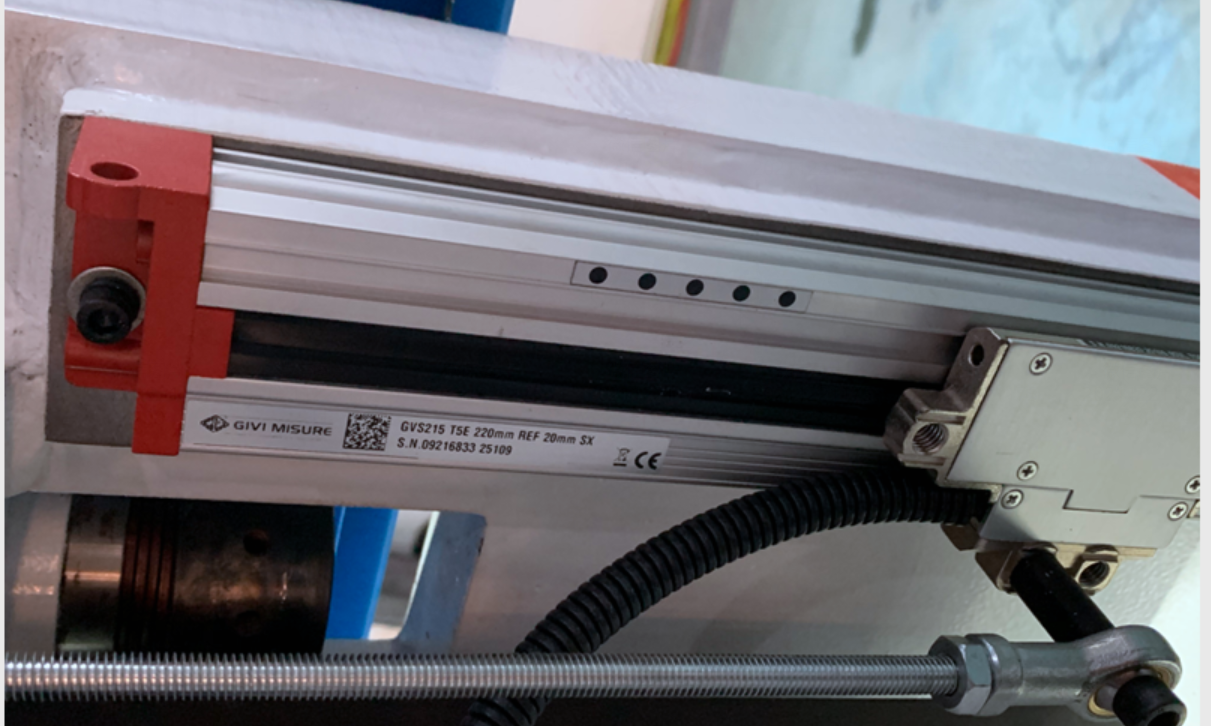

GIVI Magnescale

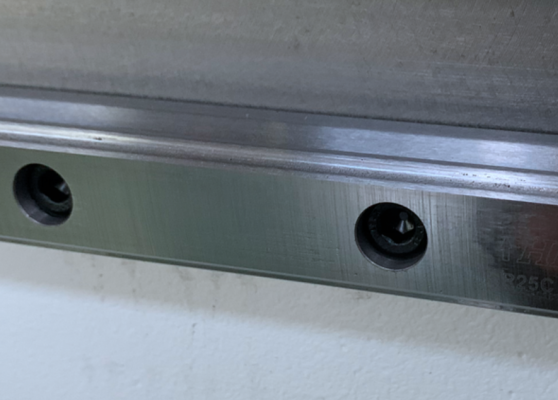

HIWIN Guide Rail

2.Technical Parameters

3. Machine Performance

◆ Robust Design: Engineered with a rigid structure and optimized through finite element analysis to reduce bending deformation, ensuring high-quality workpieces.

◆ Advanced Control System: Equipped with a German-imported, fully closed-loop electro-hydraulic servo synchronous control system for precise operation.

4.Frame Structure

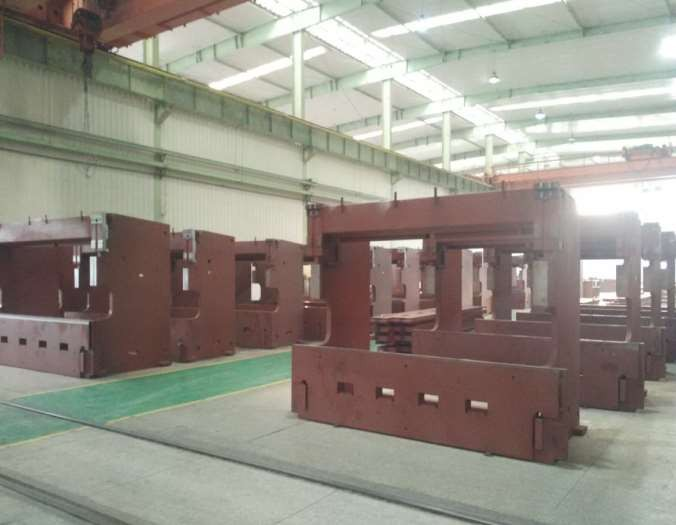

◆ Welded Construction: Integrally welded steel plates provide excellent vibration resistance.

◆ Stress Elimination: Processed in a large tempering furnace to eliminate internal stresses, ensuring long-term stability and no frame deformation.

◆ Precision Machining: Formed in a single pass by a machining center, guaranteeing parallelism and perpendicularity of all mounting surfaces.

◆ Throat Mechanism: Features a “C”-shaped plate at the throat to directly measure the distance between upper and lower dies, enhancing part precision.

5. Slider Structure

◆ Upward Bending Design: Operates with low noise and consistent performance.

◆ Enhanced Slider: Thickened and widened to minimize deflection during bending operations.

◆ Universal Die Mounting: The upper die mounting surface accommodates a wide range of die clamping requirements.

6. Hydraulic System

◆ Advanced Servo Control: Utilizes a cutting-edge, fully closed-loop electro-hydraulic servo synchronous control system.

◆ Independent Programming: Y1 and Y2 axes can be programmed separately, supporting off-center loads and conical bending.

◆ Programmable Pressure Holding: The lower fixed center allows programmable pressure holding time to ensure accuracy across various parts.

◆ High-Precision Measurement: Incorporates a Givi magnetic grating ruler with a closed-loop high-precision guiding and position measuring system, suitable for full-length or off-center load processing.

◆ Durable Components: Uses Stauntone seals in the oil cylinder for superior sealing and extended service life.

◆ Premium Fittings: Hydraulic pipe fittings and joints are imported, offering high quality and reliable performance.

◆ Safety Features: Includes overload overflow protection for enhanced safety.

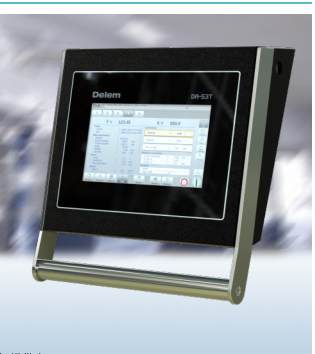

7. Control SystemDELEM DA53T

◆ Delem new generation DA-Touch controls offer an even higher grade of efficiency in programming, operation and control of today’s press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.

◆ The touch screen gives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimized ergonomics throughout the application.

◆ The DA-53T offers 2D programming that includes automatic

bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.

◆ Highly effective control algorithms optimize the machine cycle and minimize set-up time. This makes using press brakes easier, more efficient and more versatile than ever.

8. Standard Configuration
