Large Format Metal Plate Laser Cutting Machine

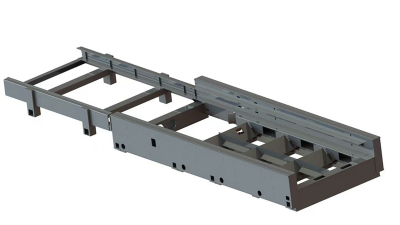

Machine Bed:

1) Bed structure with high precision&reliability for complex precessing
2) Machine bed with rigid Frame & Gantry, compact design, efficiency anuser friendliness.

Aluminum beam:

1) Machine beam is made from high grade aluminum, ensures swift and agile cutting motions.
2) The beam welded by high strength steel, ensures its strength, stability and impact resistance.

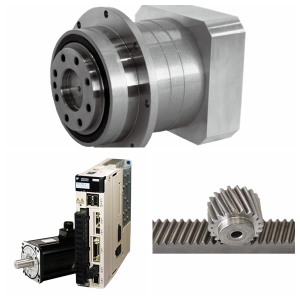

Transmission System

1) YYC brand guid and slide give machine high accuracy and higher precision.

2) Fuji servo motors are combined with Shimpo reducers, significantly improved  the precision of the machine , also enhances the overall stability and reliability of the machine.

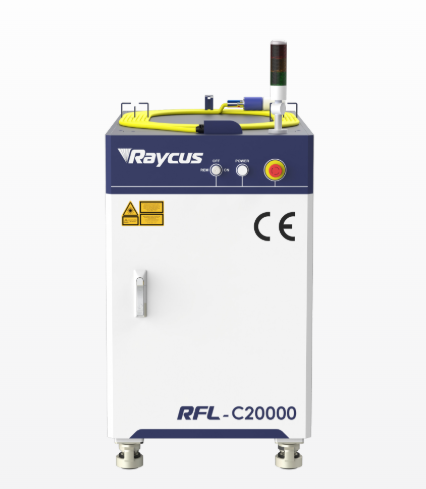

20000W CE Raycus laser source

1) 20000W high-power Global series with high light beam quality, maintenance-free operation and advantages.
2) Laser source with high electro-optical conversion efficiency, more stable and reliability.

Laser Head+Controlling System

1) Hypcut controlling system FSCUT8000 is for high power laser cutting, which can realized intelligent prodcution.
2) Intelligent laser cutting head with collision protective function, Quick recovery after impact, reducing usage costs.

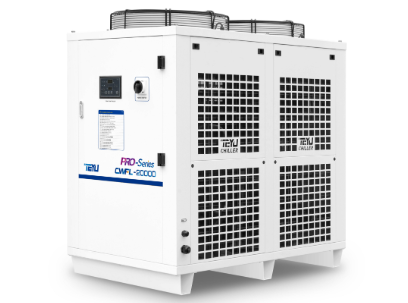

Industral water chiller

1) High performance industrail cooling system with dual refrigeration circuit, to ensure relable operation.
2) Water chiller with industral temperature control system, the fibler laser can be perfectly cooled.
