Sheet & Tube Metal Fiber Laser Cutting Machine
Description :
WT-3015PT integrates two systems: one dedicated module for sheet metal cutting and another for tube cutting. This dual-use machine can cut both metal sheets and tubes, optional with an exchange platform. This dual- function machine with two worktables also help increase the working efficiency by 50%. It can Change instantly from sheet to tube without the need for additional setup or tooling. Concentrated functions and easy operation can help you get familiar with and master the operation of the equipment more quickly and improve work efficiency.One machine with multi-function can Save purchasing costs and working space.
Laser Power:3000-12000W Processing Area: Plate: 3050*1550 mm Tube: Φ20-220mm ,6000mm Running Speed:80 m/min Cutting Thickness: Max 30mm

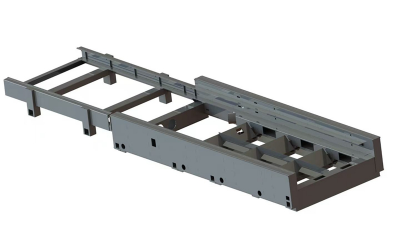

1) Upgraded machine bed with level-up rigidity by 30% and decrease the negative influence on machine bed.
2)The structural of the bed frame strength enhanced by 25%, ensures robust atability and precise cutting.

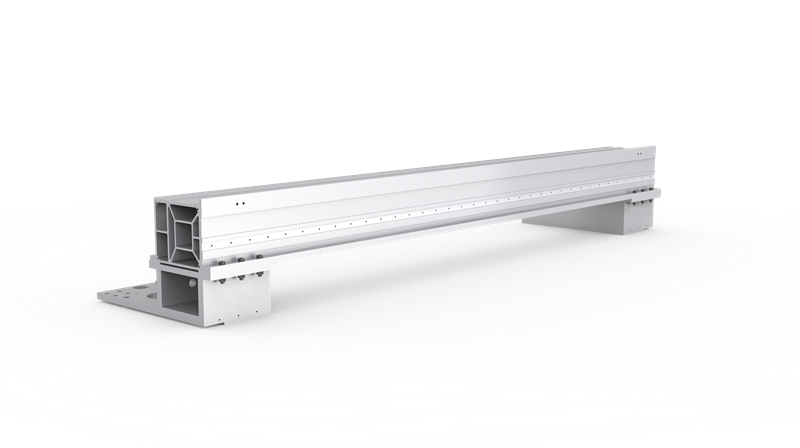

Aluminum beam:
1) Aviation-grade Aluminum beam weight less by 30%, inertia smaller, performance more stable.
2) Beam structure strength up by 25%, max no-load speed reach up to 100mm/min.

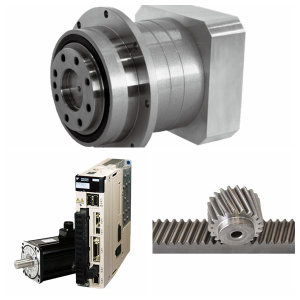

Transmission System
1) high power servo motors and drivers ensures precise control cover the machine’s movements
2) High precision racks and pinion from achieves high acceleration and sppeds synchronized 170m/min

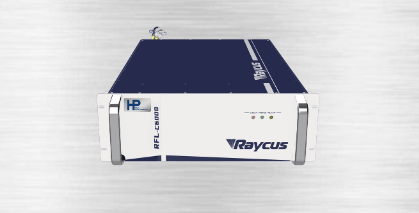

6000W Raycus laser source CE
1) 6000W laser with high electro-optical conversion efficiency, high reliability, and long service lift.
2) Output fiber core diameter is 100 μm.(customizable), can integrate with robots to meet
3D processing requirement.
Laser Head+Controlling System
1) High-end intelligent control system with advanced functions such as smooth Microjoint, Fast cutting and circle center to meet various processing needs.
2) Cypcut laser head with optimized water cooling system, providing full-body cooling for the cutting head

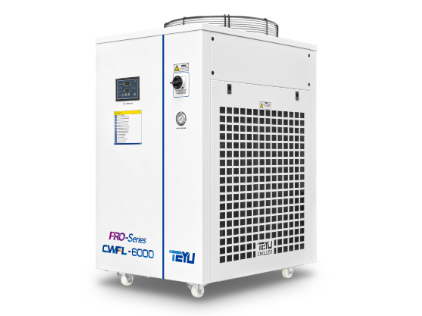

Industral water chiller
1) Water chiller has a water temperature control rang of 5°C ~35°C, with over temperature alarm function.
2) Energy Saving, overcurrent protection or compressor
Technical Parameter:
Item
Parameter
Model
WT3015PT
Working size
1550*3050mm
X travel
1550mm
Y travel
3050mm
Z travel
300mm
X/Y position accuracy
±0.05mm
Z position accuracy
±0.008mm
X/Y resetting
±0.03mm
position accuracy
Max no-loading running speed
120m/min
Processing panel thickness
18 mm
(Max)
X/Y max accelerated speed
1G
Table Max loading weight
1T
Cooling
Water cooling
Power demand
Voltage
380V
Current
100A
frequency
50HZ
Outer size
Length
5300mm
Width
2600mm
High
2100mm
Machine weight
7.5T
Item
Produce factory
Remark
Whole lathe bed
WISECUT
Crossbeam
WISECUT
Aviation aluminum
Laser
Raycus
6000W laser
Laser Cutting Head
BOCI BLT
Auto Focus
Controlling system
CYPCUT
Height follow system
CYPCUT
BCS100
Servo Motor
Japan Fuji
Reducer
Japan/France reducer
Rail
Taiwan HIWIN
Rack
Taiwan helical rack
YYC helical rack
Chiller
Hanli Chiller/S&A Chiller
HL-6000 for 6KW
Electrical components
French Schneider
Pneumatic component
SMC / AirTAC
Proportional valve
SMC
Industrial Computer
Yankong
Application：
Wisecut metal sheet laser cutting machine widely used in sheet metal processing,suitable for cutting stainless steel.carbon steel ,alloy steel, aluminum,aluminum alloy, galvanized sheet, aluminized zinc sheet, other metal plate.and steel pipes.
