Single Platform Metal Sheet Laser Cutting Machine
Single Platform Metal Sheet Laser Cutting Machine
Single Platform Metal Sheet Laser Cutting Machine
Description :

Wisecut WT-1530 Open Type Laser Cutting Machine with a single working table ,designed for high-precision metal cutting, combining speed, reliability, and exceptional edge quality .This economical ,small format cutting machine ,widely used in Steel Fabrication, Chassis Cabinets, Construction, Lighting Hardware, Advertising Signs, Auto Parts, Machinery Parts, Display Equipment, Hardware Products and other industries. Laser power max to 12000W .3kw basic single table can cut all kinds of thick plates, such as steel plates, stainless steel, aluminum alloy plates, cemented carbide and other hard materials, and keep the cutting materials from deformation.

Laser Power: 3000-12000kW

Processing Area: 1550*3050 mm

Running Speed: 100 m/min

Cutting Thickness: Max 30mm

Online Message Get a Quote
Product Description:

Machine Body:

1) Machine bed with welded steel plate, high rigidity.
2) Machine bed is temper heat treatment,delete weld stress and ensure no deformation
3) Machine bed install rail, processing materials by gantry working center, ensure install surface flatness error of 0.02mm (Weld temper heat treatment lather bed)

 Bed Structure

Aviation Aluminum Beam

1) Laser Machine Beam with integrally cast molding, reasonable structure,high rigidity, not easy deformed.
2) Machine beam is processed by Gantry processing center, ensure the installing feature position tolerance.
3)Light weight Cast aluminum beam,small impact force and high precision

 Aluminum beam

High Precision Transmission System

1) High precision rack and pinion with Japan high accurancy reducer
2) Big power servo driver and motor to increase machine running speed and acceleration

 Transmission System

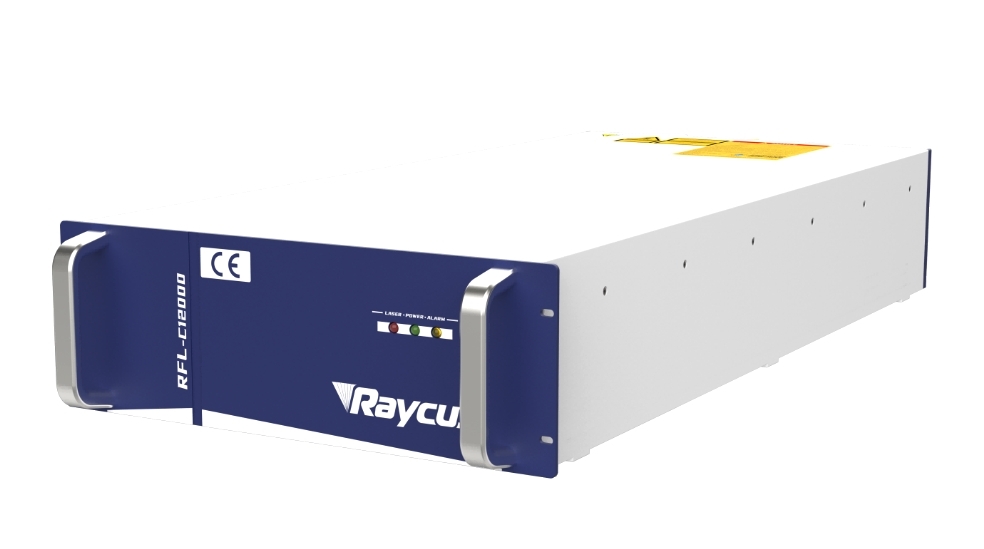

Raycus Laser Rezonrator-CE Version

Good photoelectric conversion rate
Rezonrator
Global warranty available

 Raycus Laser Rezonrator-CE Version

Intelligent Laser Head+Controlling System

1) Cypcut controlling system compatible with various nesting software
2) Laser head auto focus with height controlling system,convenient to maintenance
3) Laser cutting head suitable for multi-fuction usage, like plate cutting, profile cutting and bevel cutting.

 Laser Head+Controlling System

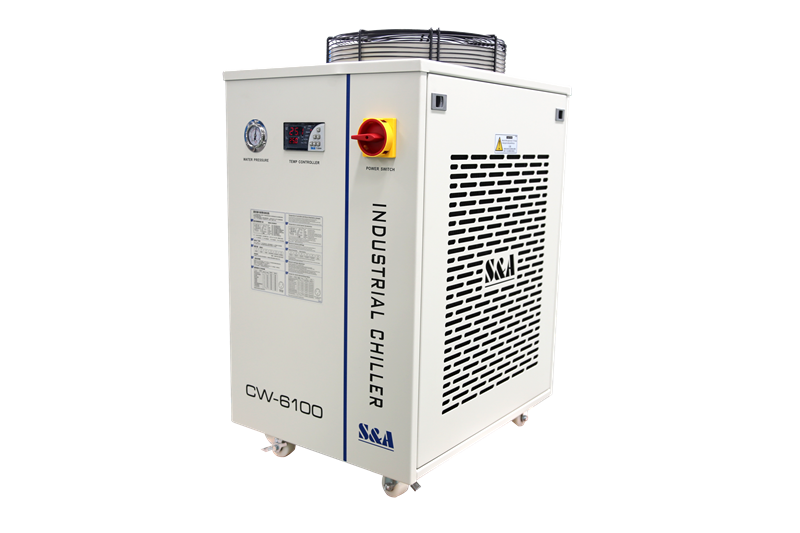

Chiller Cooling System

Dual temperature industrial cooling chillers specially designed for fiber lasers
have multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.

 Chiller Cooling System





Technical Parameter

Item Parameter
Model WT3015
Working size 1550*3050mm
 X travel 1550mm
 Y travel 3000mm
Z travel 300mm
X/Y position accuracy ±0.05mm
 Z position accuracy ±0.008mm
 X/Y resetting ±0.03mm
position accuracy
 Max no-loading running speed 120m/min
 Processing panel thickness 18 mm
(Max)
X/Y max  accelerated speed 1G
Table Max loading weight 1T
 Cooling Water cooling
Power demand Voltage 380V
 Current 100A
frequency 50HZ
Outer size Length 5300mm
Width 2600mm
 High 2100mm
 Machine weight 7.5T



Item Produce factory Remark
Whole lathe bed WISECUT
 Crossbeam WISECUT Aviation aluminum
 Laser Raycus 3000W laser
Laser Cutting Head BOCI BLT Auto Focus
Controlling system CYPCUT
Height follow system CYPCUT BCS100
Servo Motor Japan Fuji
 Reducer Japan/France reducer
 Rail Taiwan HIWIN
Rack Taiwan helical rack YYC helical rack
Chiller Hanli Chiller/S&A Chiller HL-3000 for 3KW
Electrical components French Schneider
Pneumatic component SMC / AirTAC
Proportional valve SMC
Industrial Computer Yankong



Application

Wisecut metal sheet laser cutting machine widely used in sheet metal processing,suitable for cutting stainless steel.carbon steel ,alloy steel, aluminum,aluminum alloy, galvanized sheet, aluminized zinc sheet, other metal plate.and steel pipes.

Plate-cutting
