Two chuck Pipe Laser Cutting Machine

Description :

WT-6023T Dual-Chuck Tube Laser Cutter Equipped with a special cutting system, the machine is easy to operate, high precision, and can cut square, round, rectangular and other metal tubes with different interfaces.It has a power failure memory function, professional nesting software and laser cutting system are highly integrated, with unique functions and cutting effects. Widely used in Furniture Industry, Automotive Industry, Metal Processing Industry, Engineering Machinery Industry, Construction Industry, Aerospace Industry, Chemical and Power Industries . The 0 tailing tube design ensures efficient and high-quality results, with zero material waste for maximum cost savings.

Laser Power: 3kW-6kW

Maximum Pipe Length: 6.0m

Chuck Clamping Range: Φ20-Φ230mm

Online Message Get a Quote

Product Description:

1. Whole Machine Details List

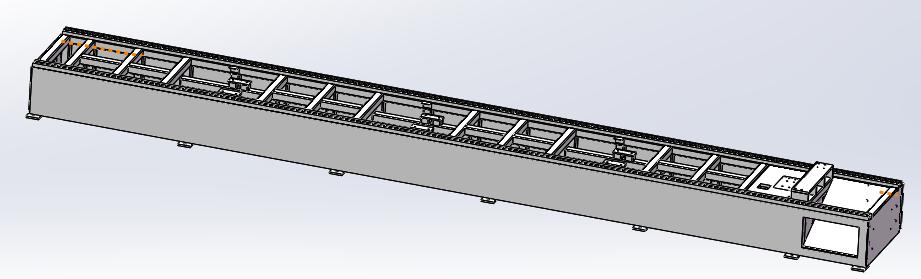

Machine Bed Body The machine bed adopts an integral welding structure; rough machining is carried out after annealing to eliminate internal stress, and fine finishing is made after secondary vibration aging treatment, which solves the stress caused by welding and machining, thus greatly improving the machine performance and stability.

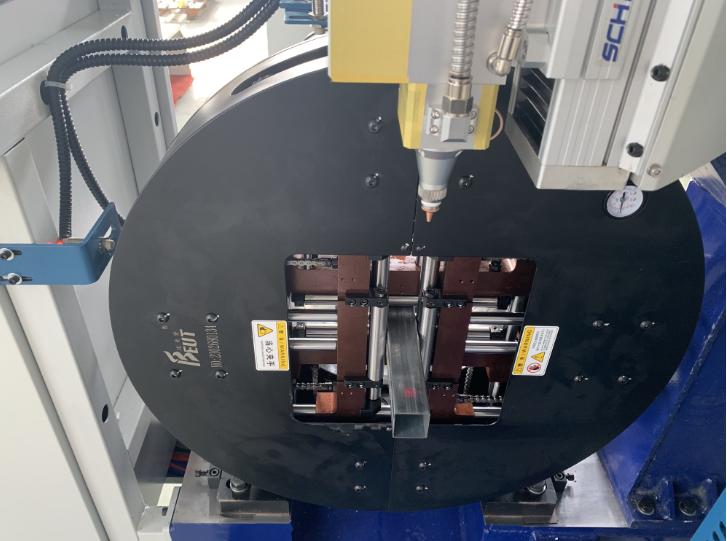

Fixed Pneumatic Chuck Pneumatic chuck hole diameter is 220mm. Two-position clamping, using keyway positioning, simple operation, No need to adjust the precision; Can clamp square tube, round tube, rectangular tube; Light weight, small inertia, good braking ability; The highest level of dust-proof, only need routine maintenance; Imported bearings, good stability, smooth motor curve

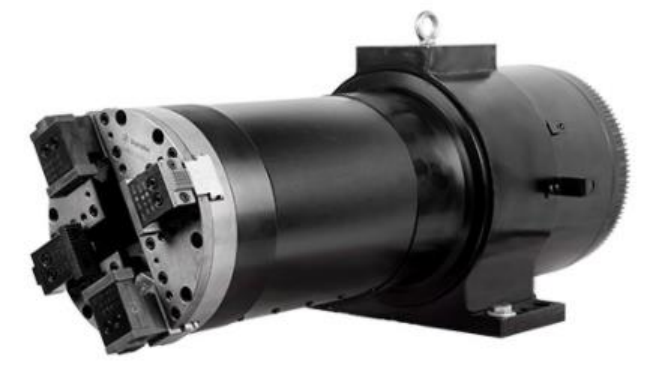

Moving Pneumatic Chuck Double-acting pneumatic pipe clamping chuck; Clamping range: ∅10- ∅220mm; Claws are linked in pairs and automatically centered; The moving chuck is transmitted by the imported servo motor through gears. Move and drive the chuck to rotate. It can extend into the inner hole of the matching front card to the maximum extent, and the tailings are reduced to the minimum.

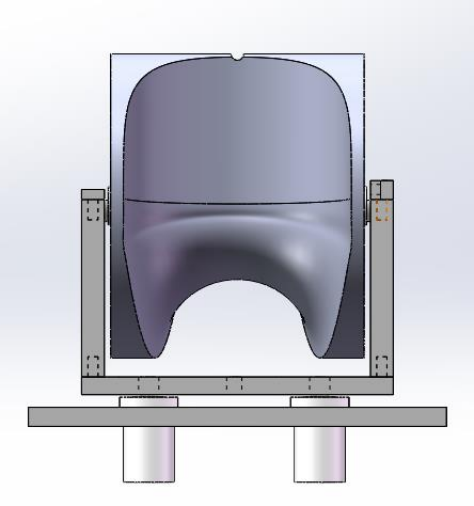

Rotable Variable Diameter Lifting Support System The rotatable variable diameter lifting support system mainly consists of variable diameter wheels, guide rails, air cylinders, etc. According to the size of the cut pipe, the customer rotates to the range of the reducing wheel to be supported, locks and fixes it before supporting it.

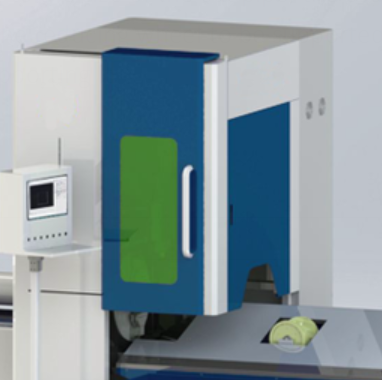

Sheet Metal Cover Surrounding The upper opening is convenient for debugging and operation, and contains a dust suction pipe to discharge the waste gas generated during cutting.
Laser Generator 3000W/6000W Raycus laser generator
Automatic Focus Laser Cutting Head Cypcut controlling system and BOCI BLT 421T series laser cutting head with auto focus function

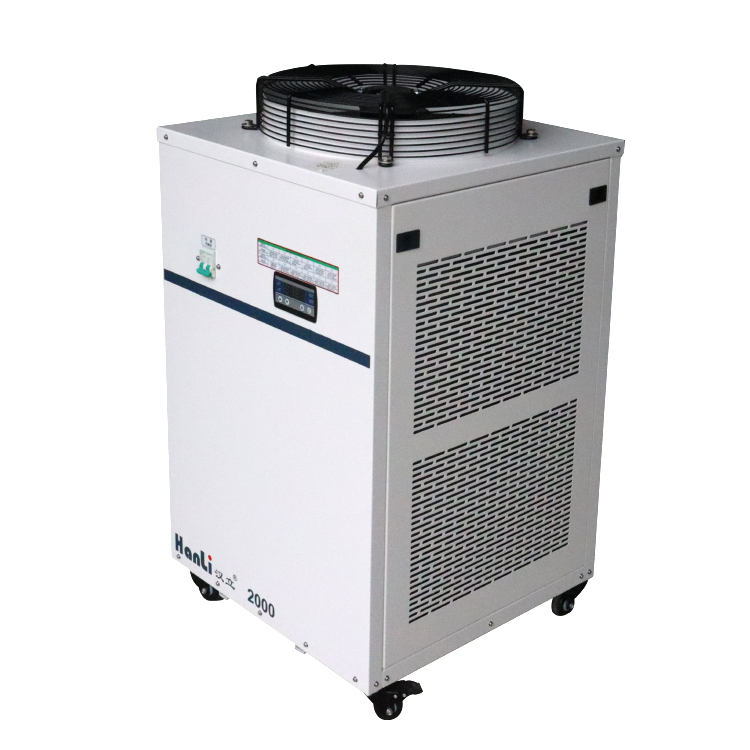

Industrial Cooling Chiller Hanli HL-2000 chiller

2. Machine Technical Parameters

Machine Working Area
The processing range	Square tube, Round tube Φ10mm-φ230mm Cutting Length 6000mm
The X axis	230mm
The Y axis	6500mm
The Z axis	120mm
Precision
X/Y axis positioning accuracy	±0.03mm/1000mm
X/Y repeat positioning accuracy	±0.02mm/1000mm
The Z axis positioning accuracy	±0.02mm
The Z axis repeat positioning accuracy	±0.01mm
Speed
X/Y axis maximum positioning speed	80m/min
X/Y axis maximum acceleration	8m/s²
Chuck Rotation Speed	105rpm
Power Supply
Phase number	3
Voltage	380V
Frequency	50HZ
Total power protection grade	IP54
Whole Machine Power(not including laser and chiller)	10KW
Weight and measures
Overall dimensions (LWH)	11600mm2100mm2450mm
Machine Weight	5.2 Tons

3. Main Configurations

Serial Number	Name	Brand	Comment
1	Laser	Raycus 3000W	China
2	System	Cypcut tube controlling	CHINA Shanghai
3	Cutting head	BOCI Automatic Focus Laser Head	CHINA Shanghai
4	Motor	Fuji	JAPAN
5	Motor Driver	Fuji	JAPAN
6	Chuck	230 Chuck Pneumatic	CHINA
7	Rack	Taiwan YYC	TAIWAN
8	Reduction gears	Shimpo	Japan
9	Linear guideway	Taiwan HIWIN	TAIWAN
10	Magnetic valve	Japan SMC	JAPAN
11	Proportional valve	Japan SMC	JAPAN
12	Electrical components	Schneider	France
13	Industrial Chiller	HANLI	CHINA
14	Machine Bed	WISECUT	CHINA

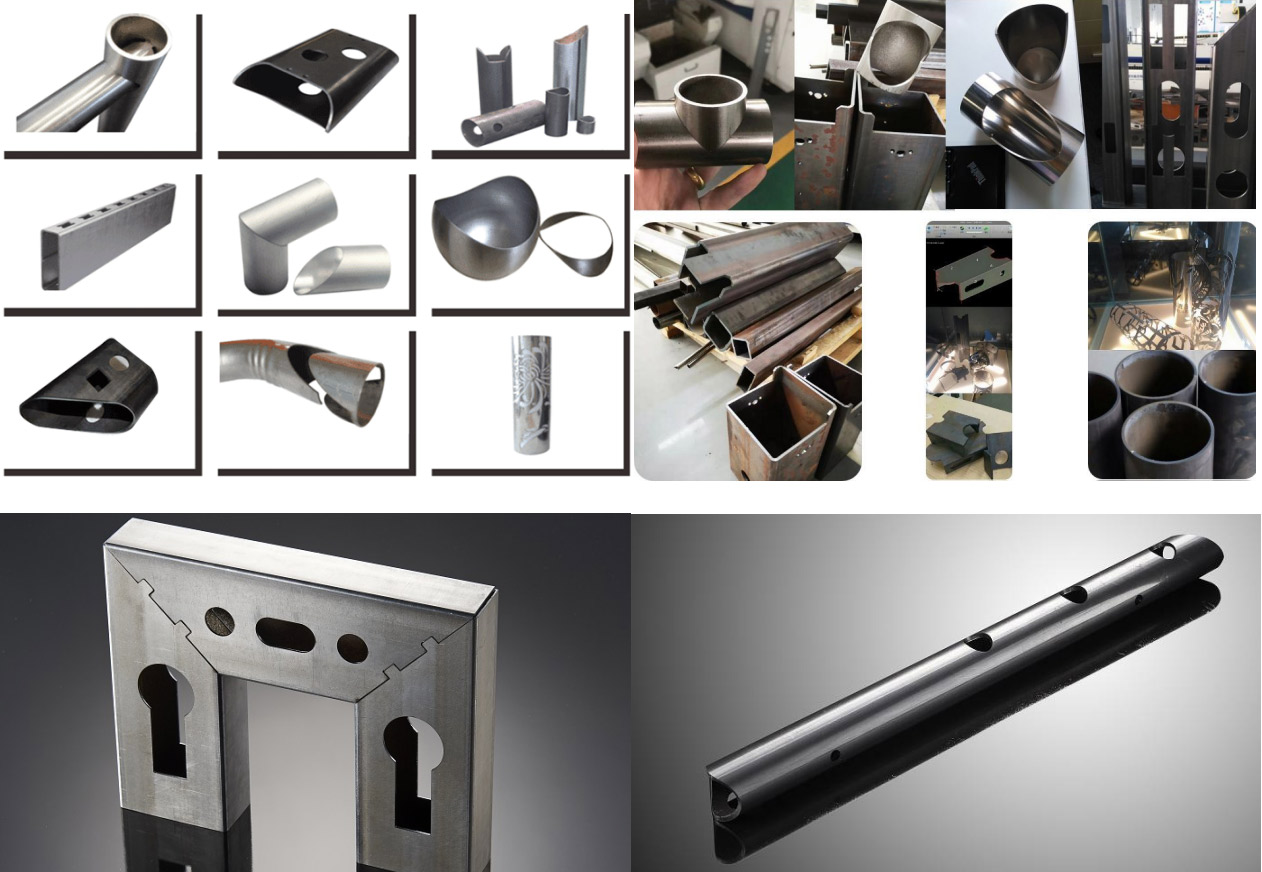

4. Cutting Samples
