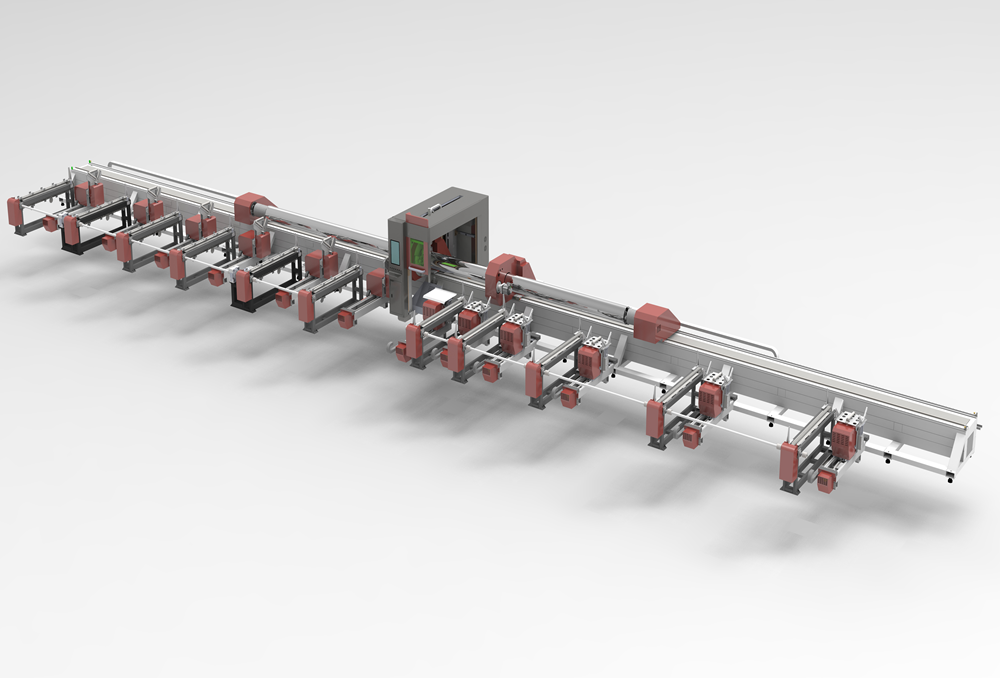

4 Chuck Profile Heavy Laser Tube Cutter

Description :

WT-12035T Ultra Heavy Four-chuck Tube Laser Cutting Machine designed for ultra heavy tubes and profile,widely used in engineering machinery, bridges and tunnels, construction machinery, steel structures, and other industries, helping enterprises to improve quality and efficiency.The beam metal cutting system is easy for heavy-duty tube loading and unloading without shutdown waiting. The system can decrease unproductive time and avoid accident probabilities of artificial loading and unloading.4-chuck design ensures “0” tailing with better accuracy. Advanced CNC system and cutting software enable high-speed cutting. Four-chuck allows reversed cutting for whole pipe processing, maximizing material utilization and cost-saving.

Laser Power: 3kW-20kW

Maximum Pipe Length: 12m

Chuck Clamping Range: Φ20-Φ350mm

Online Message Get a Quote

Product Description:

1. Whole Machine Details List

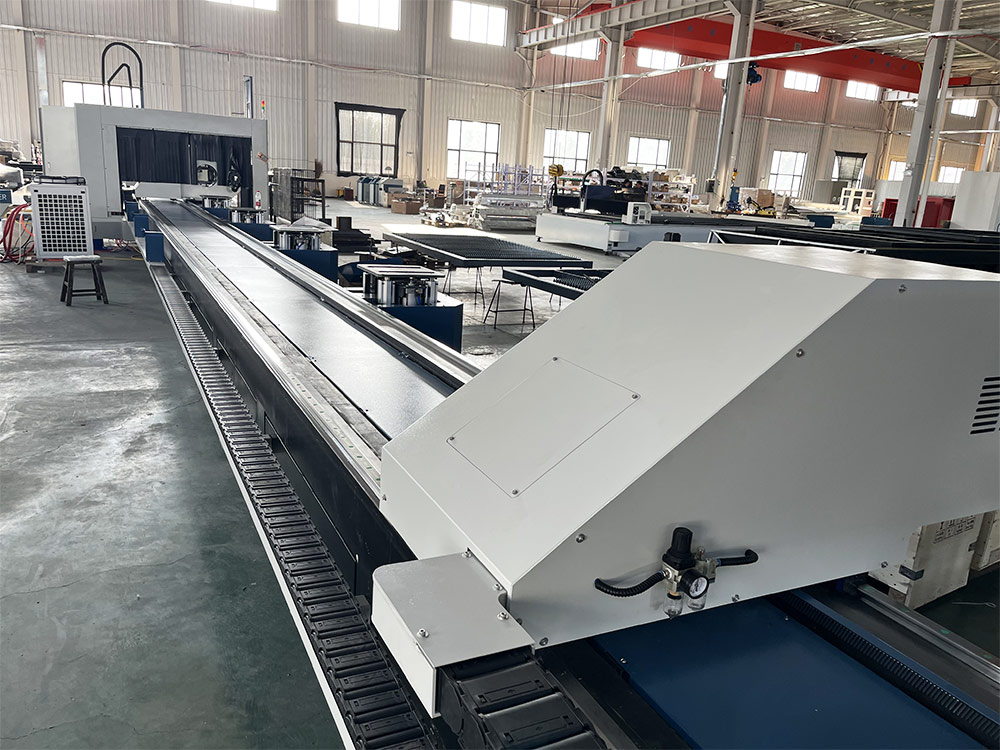

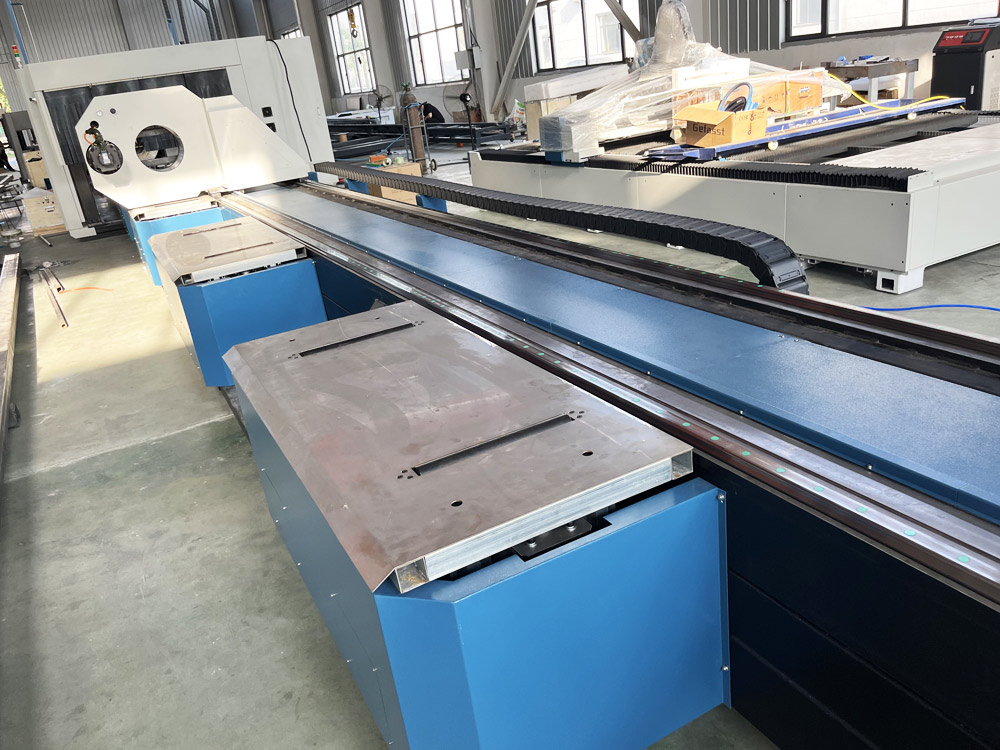

Machine Bed Body The machine bed is constructed using an integrated welding technique. Post-welding, it undergoes rough machining after annealing to relieve internal stresses, followed by precision finishing after a secondary vibration aging process. This approach effectively eliminates stresses from welding and machining, significantly enhancing the machine’s performance and stability.

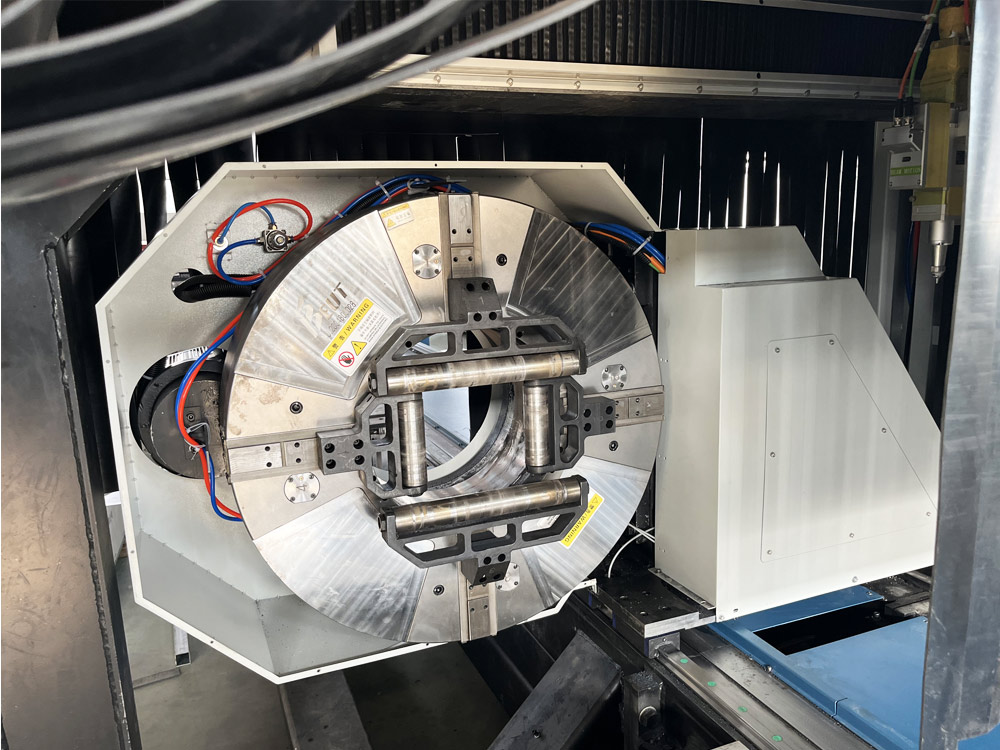

Fixed Pneumatic Chuck Hole Diameter: 500 mm Clamping Mechanism: Features four-position clamping with keyway positioning for easy and precise operation without requiring additional adjustments. Versatility: Suitable for clamping square, round, and rectangular tubes. Performance: Lightweight with low inertia and excellent braking capabilities. Durability: Designed with top-tier dust-proofing, requiring only routine maintenance. Components: Incorporates imported bearings for superior stability and smooth motor performance.

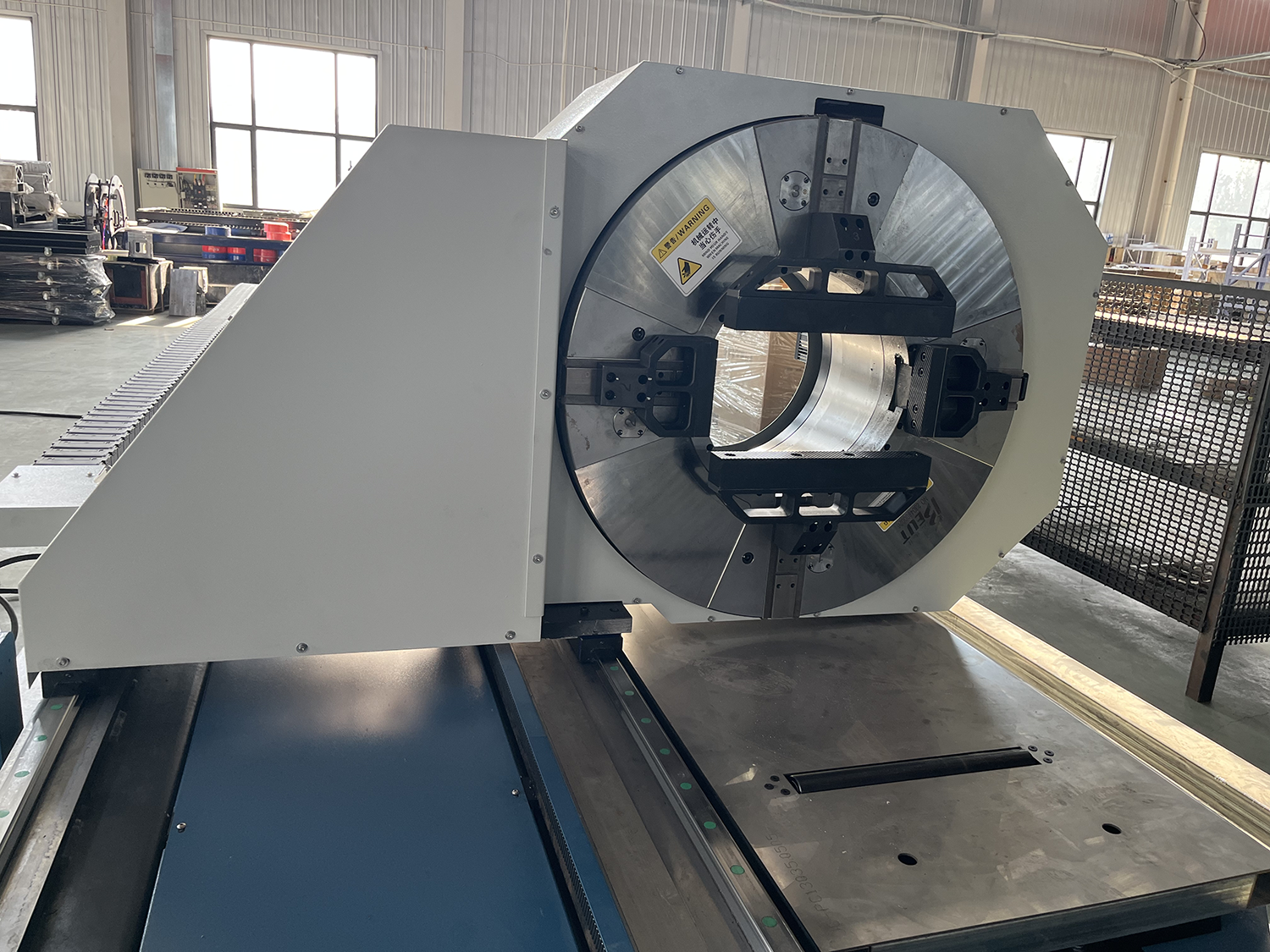

Moving Pneumatic Chuck Clamping Range: Ø10 mm to Ø500 mm Design: Equipped with a double-acting pneumatic clamping system, featuring paired, self-centering claws. Operation: Powered by an imported servo motor through a gear system, enabling both movement and rotation of the chuck. Efficiency: Extends fully into the inner hole of the front chuck to optimize material usage and minimize tailings.
Rotable Variable Diameter Lifting Support System Components: Includes variable diameter wheels, guide rails, and air cylinders. Functionality: Allows adjustment to accommodate different pipe sizes; users rotate the wheel to the desired support range, lock it, and secure it for cutting operations.

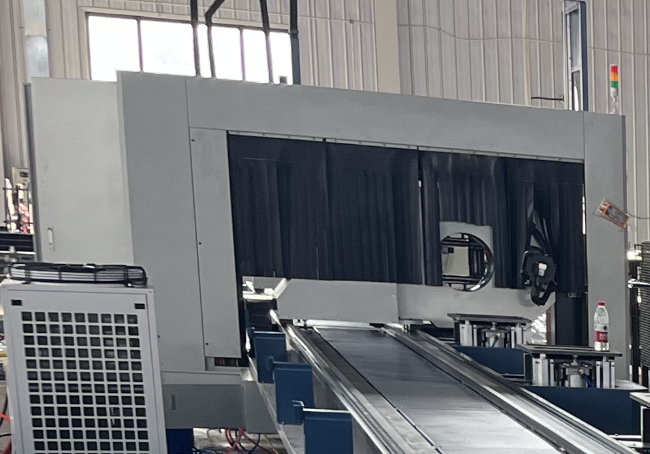

Sheet Metal Cover Surrounding Design: Incorporates an upper opening for convenient debugging and operation. Ventilation: Equipped with a dust extraction pipe to efficiently remove waste gases produced during cutting.

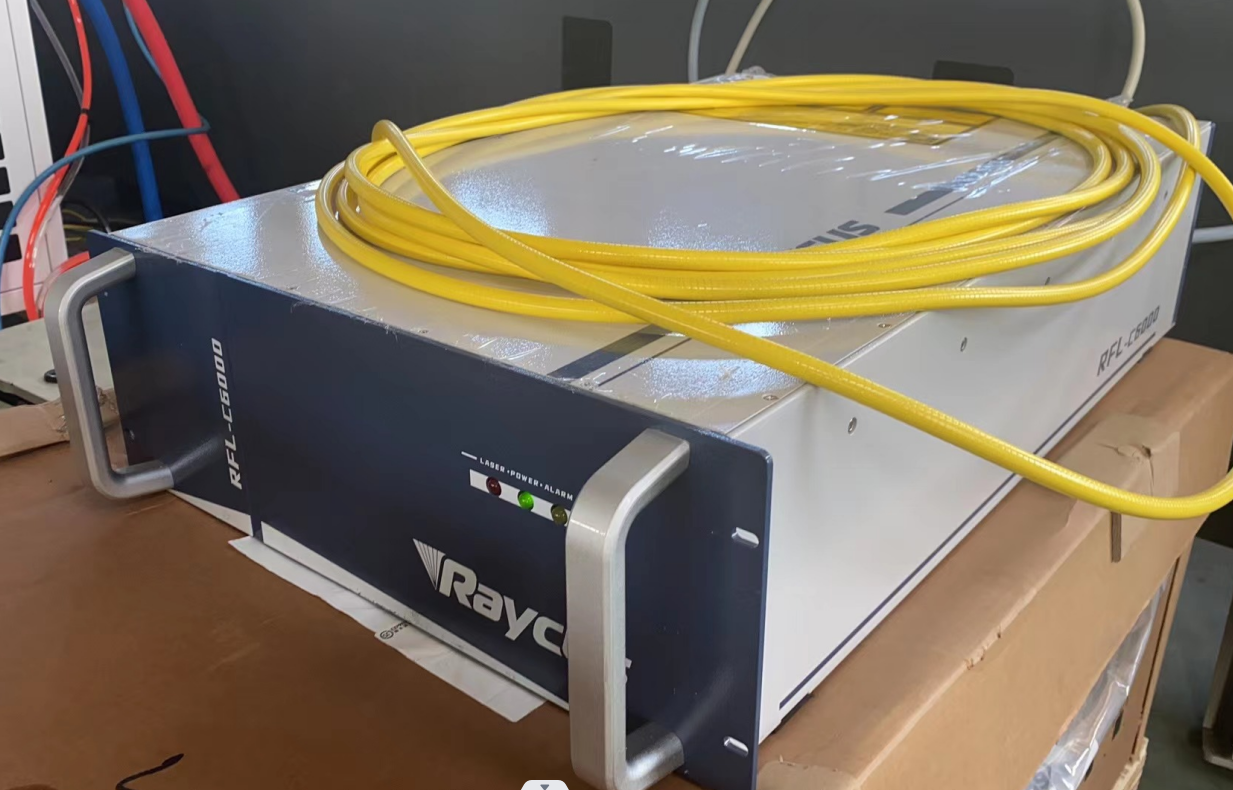

Laser Generator 6000W Raycus laser generator

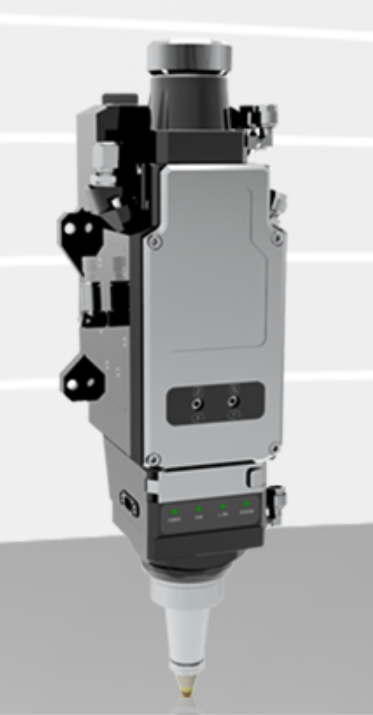

Automatic Focus Laser Cutting Head BOCI BLT421T autofocus laser cutting head for tube and profile cutting

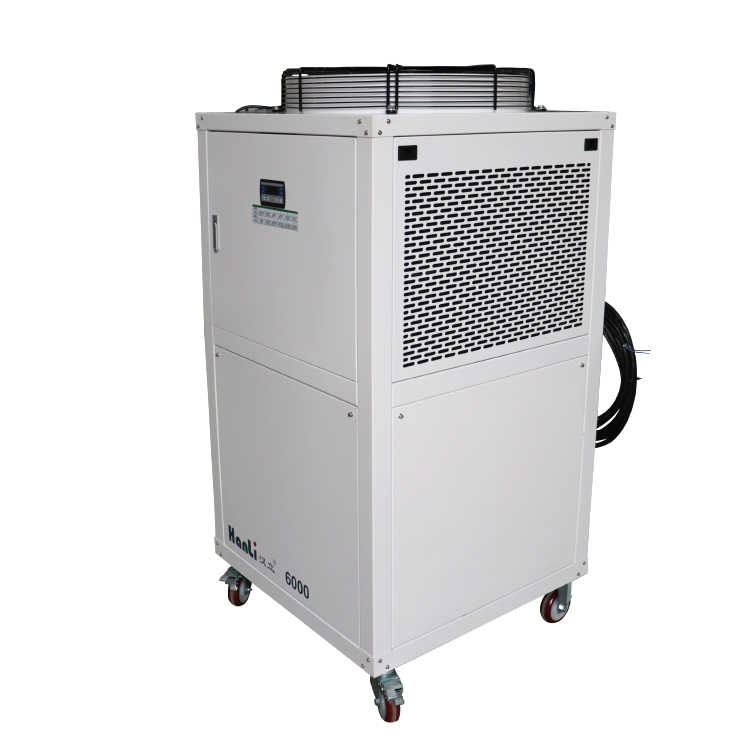

Industrial Cooling Chiller Hanli HL-6000 chiller

2. Machine Technical Parameters

Machine Working Area
The processing range	Square tube, Round tube Φ10mm-φ500mm Cutting Length 12000mm
The X axis	1000mm
The Y axis	12000mm
The Z axis	300mm
Precision
X/Y axis positioning accuracy	±0.03mm/1000mm
X/Y repeat positioning accuracy	±0.02mm/1000mm
The Z axis positioning accuracy	±0.02mm
The Z axis repeat positioning accuracy	±0.01mm
Speed
X/Y axis maximum positioning speed	90m/min
X/Y axis maximum acceleration	8m/s²
Chuck Rotation Speed	105rpm
Power Supply
Phase number	3
Voltage	380V
Frequency	50HZ
Total power protection grade	IP54
Whole Machine Power(not including laser and chiller)	27KW
Weight and measures
Overall dimensions (LWH)	2950031502290mm
Machine Weight	21.5 Tons

3. Main Configurations

Serial Number	Name	Brand	Comment
1	Laser	Raycus 6000W	China
2	System	Cypcut 5000A	CHINA Shanghai
3	Cutting head	BOCI BLT421T Automatic Focus Laser Head	Shanghai
4	Motor	Fuji	JAPAN
5	Motor Driver	Fuji	JAPAN
6	Chuck	500 Chuck Pneumatic (Four Chucks Version)	CHINA
7	Rack	Taiwan YYC	TAIWAN
8	Reduction gears	Shimpo	Japan
9	Linear guideway	Taiwan HIWIN	TAIWAN
10	Magnetic valve	Japan SMC	JAPAN
11	Proportional valve	Japan SMC	JAPAN
12	Electrical components	Schneider	France
13	Industrial Chiller	HANLI	CHINA
14	Machine Bed	WISECUT	CHINA

4. Cutting Samples
