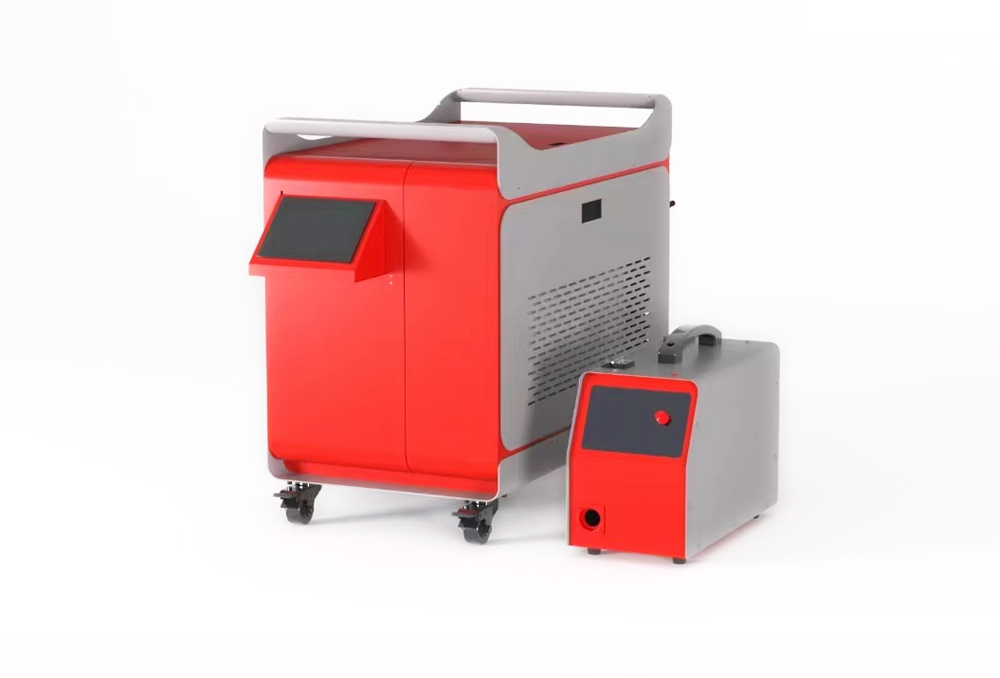

Water-cooled Laser Welding Machine
Description :
WT-WELD/WT-WELD II
WT-weldII fiber laser welding represents an absolute breakthrough in welding technology, and offer numerous benefits that translate into higher productivity, better quality, and greater cost-effectiveness in various industrial applications. With high performance on key materials such as stainless steel (SS), carbon steel (CS), and aluminum (AL). This new version is Small and lightweight. Designed with the highest precision, stability, and quality of the welding process in mind, they perfectly replace traditional methods.
Low-Maintenance Design: Engineered for effortless operation with minimal care.
Impressive Energy Efficiency: Achieves more than 25% electro-optical conversion efficiency.
Accessible Control Interface: Easy-to-use system simplifies operation for users.
Rapid Modulation Capability: Supports continuous modulation up to 5 kHz.
Flexible Power Range: Operates smoothly between 10% and 105% of total power, maintaining steady beam quality and divergence angle. This enables the same laser system to tackle high-power tasks like welding and precise low-power applications like cutting.

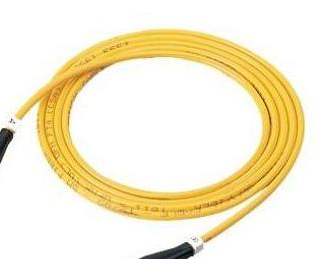

2. Transmission optical fiber
The laser welding system includes a 10-meter flexible optical fiber with a minimum bending radius of 80 mm. The fiber features advanced self-protection mechanisms, automatically shutting off the laser or optical path in cases of wear, aging, excessive bending, overheating, or laser leakage, ensuring user safety and fiber longevity.
3. Hand-held laser welding head and Wire feeding system

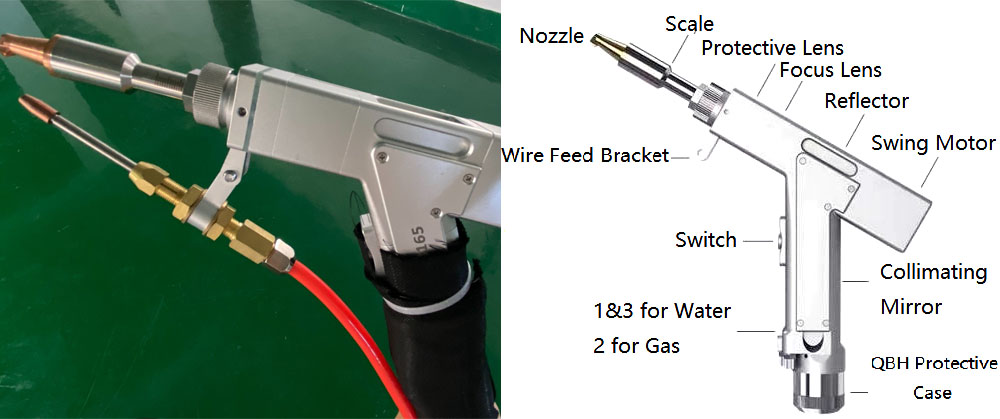

3.1 Handheld laser welding head
(SUP23T for 1500W and 2000W usage)
Characteristics of laser welding head:
Innovative Internal Mechanism: Smart control technology enhances flexibility for part differences and weld sizes, overcoming constraints of tiny light spots to achieve excellent weld results.
Comfortable and Lightweight: Crafted for ease with an intuitive handle, allowing effortless single-handed use.
Improved Safety Measures: Equipped with several warning systems, automatically stopping the laser when the workpiece is detached.

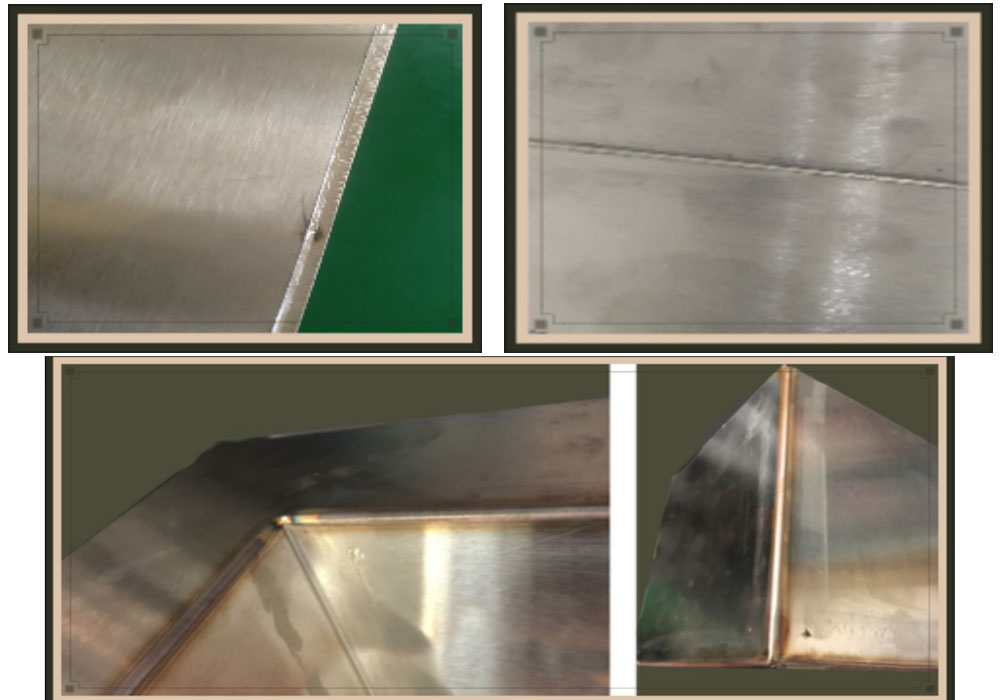

Exceptional Weld Finish: Produces seamless, rapid welds free of blemishes or color changes, removing the need for additional polishing and reducing material costs.
Adaptable Nozzle Configurations: Accommodates various nozzle angles to suit a wide range of welding needs.
Technical parameters:
Type of interface: QBH laser incident mode: coaxial
Collimating focal length: 50mm and focusing focal length: 80mm/120mm
Protective gas: coaxial weight: 0.9kg and adjustable width: 0-6mm

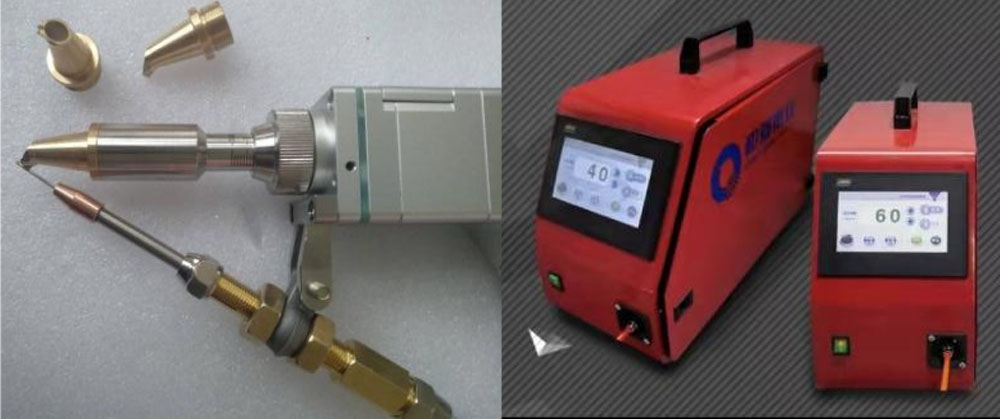

3.2 Wire feeding system
Supported Wire Sizes: 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm
Key Advantages:
Easy Installation: Long lifespan, low noise, and energy-efficient operation.
Compact and Lightweight: Delivers high torque, suitable for long-distance handheld welding.
Stable and Adjustable: Synchronized wire feeding with welding control, adaptable to various scenarios.

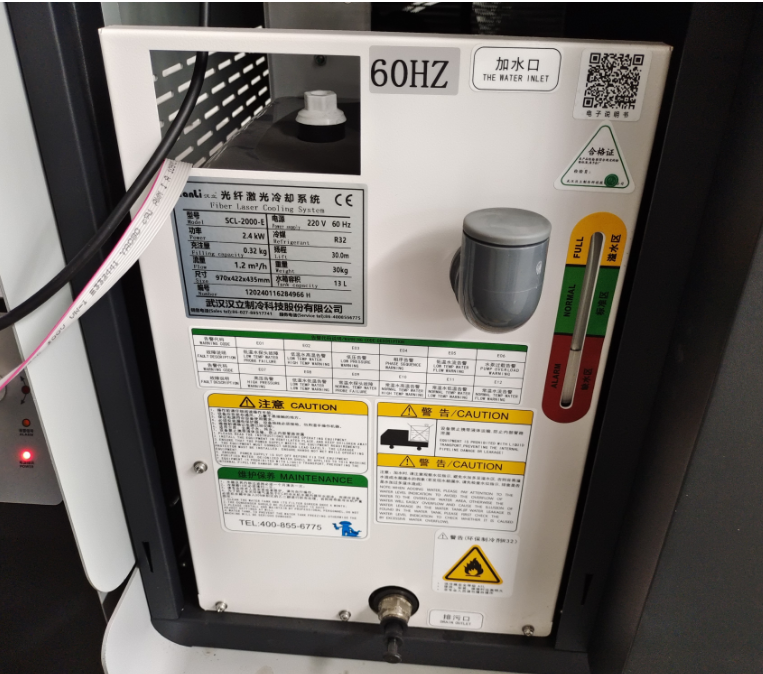

4. Chiller(1500W and 2000W)
Product Advantages:
Effective Cooling System: Triple-layer condenser setup delivers substantial cooling power and superior heat dispersal, ensuring longevity in tough conditions.
Superior Water Purity: Accurate filtration prolongs the laser’s operational life.
Automated Warm-Up: Speeds up startup in chilly environments, enhancing work efficiency.
Stylish Appearance: Curved, graceful design elevates the professional look of laser equipment.
Cost-Efficient Operation: Reduces running expenses through smart energy consumption.
Flexible Power Options: Accommodates high, medium, and low power levels to fulfill varied customer requirements.
